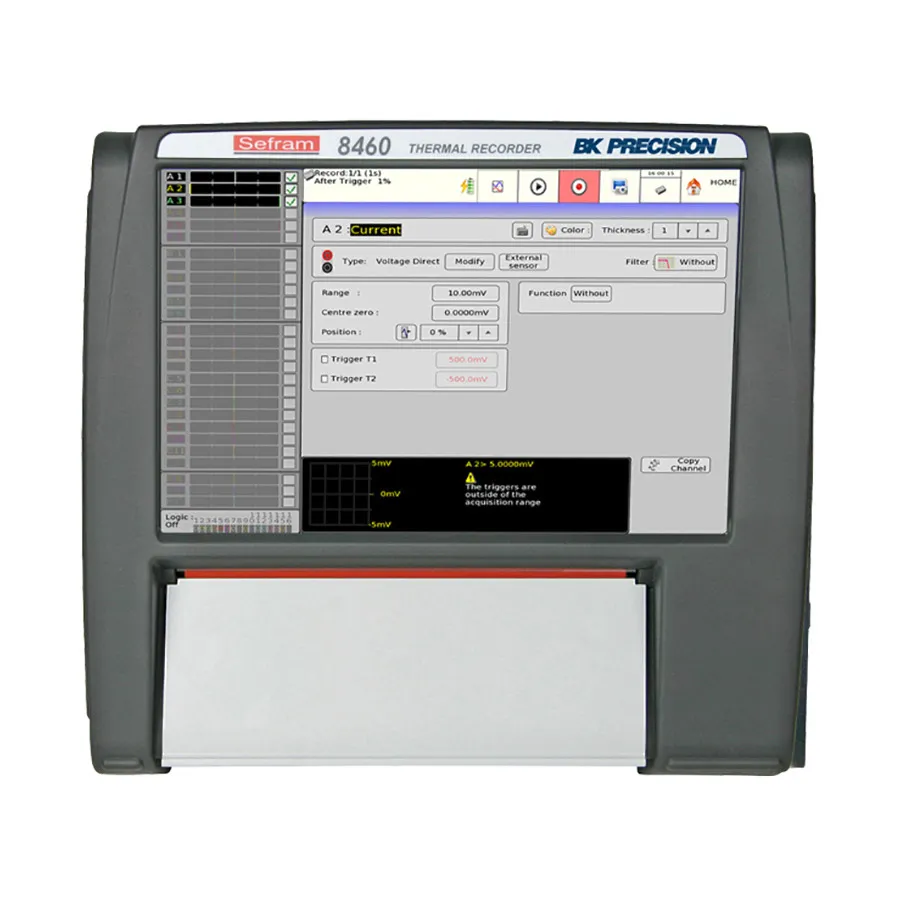

B&K Precision 8460 Data Acquisition System

Overview

The B&K Precision 8460 is a high-speed, configurable data acquisition system that combines fast sampling rates, deep internal memory, a built-in thermal printer, and a large 15.4-inch touchscreen display. The system features internal software tools including power analysis applications and a function editor for complex mathematical calculations across multiple channels. With 1 µs sampling rates on up to six channels simultaneously and 500 GB of internal memory, the 8460 supports extended recording periods for various measurement applications.

Key Features

• 1 MSa/s (1 µs) sampling rate on each channel
• Up to 72 channels with multiplexed board options
• 500 GB SSD internal memory (2 TB optional)
• Four measurement board types: Universal, Multiplexed, Strain Gauge, and High Voltage
• Measurement up to 1000 VAC with high voltage board
• Temperature measurements with thermocouples and Pt100/Pt200/Pt500/Pt1000 sensors
• GPS and IRIG timing options
• 16-bit resolution (multiplexed and strain gauge boards) or 14-bit (universal and high voltage)
• Built-in 270 mm thermal printer with four operating modes
• 15.4-inch wide TFT touchscreen display
• 16 logic input channels
• USB host and LAN connectivity
• CAT III 1000 V and CAT IV 600 V rated
• Free software for control and analysis

Applications

• Industrial data logging and measurement
• Electrical power analysis
• Multi-channel sensor signal monitoring
• Temperature and voltage measurement in harsh environments
• Long-term data recording with built-in memory

Included Accessories

• 270 mm thermal printer
• Free software for control and analysis
