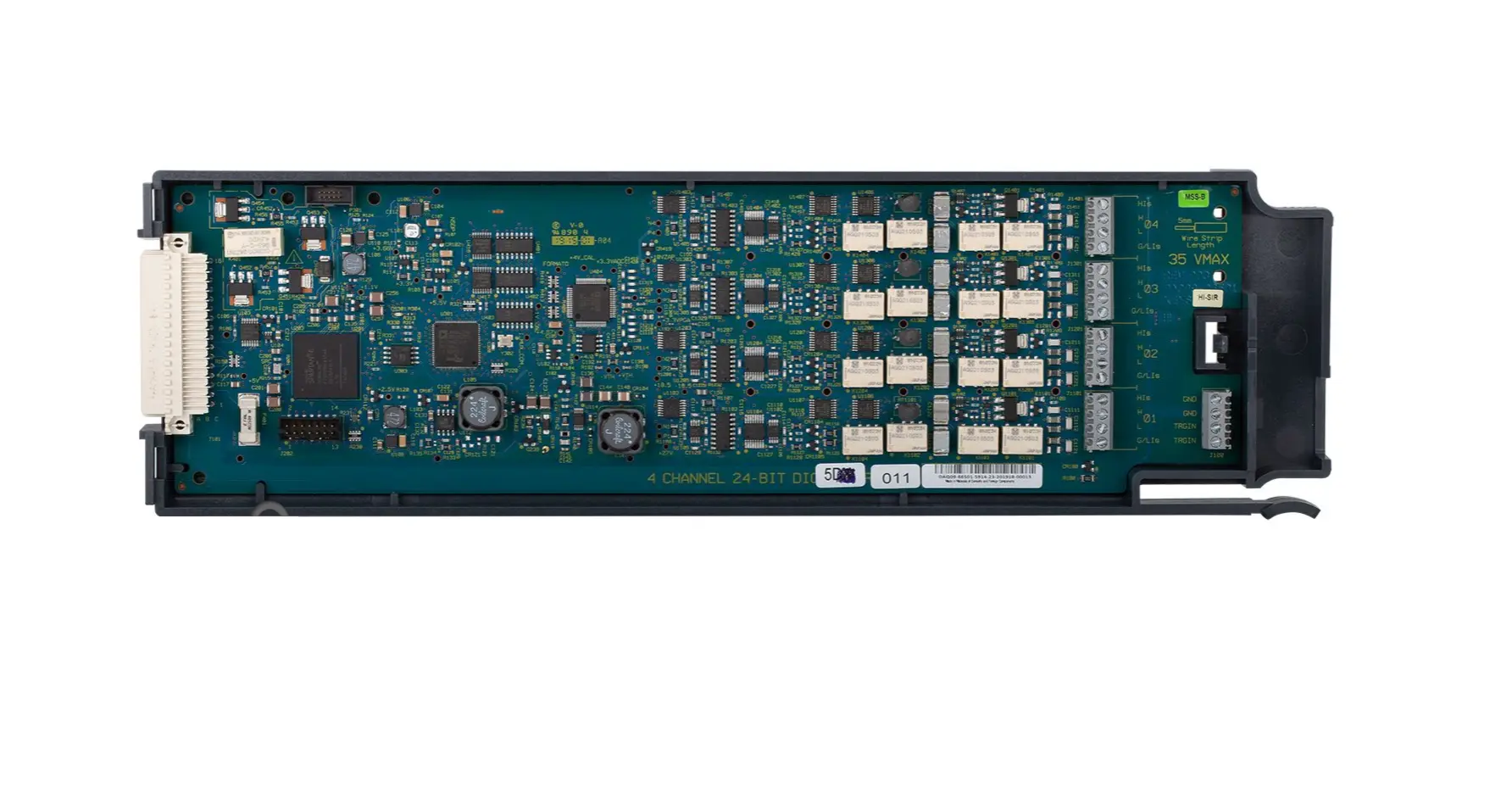

Keysight DAQM909A 4-Channel Digitizer
Request a quote
Keysight DAQM909A is a 4-channel simultaneous digitizer with 800 KSa/s sampling rate and 24-bit resolution for dynamic data acquisition.
Product details
| Model | DAQM909A |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight DAQM909A is a 4-channel simultaneous sampling digitizer module for the DAQ970A and DAQ973A Data Acquisition Systems. It enables dynamic data acquisition for harmonic and noise distortion analysis, power analysis, and acoustic characterization of electromechanical devices. Each channel can be independently programmed to one of four input modes with configurable current source settings.
Key Features
- 4 channels of simultaneous sampling with differential inputs
- Sample rates up to 100 KSa/s (frequency domain) and up to 800 KSa/s (time domain) with 24-bit resolution
- Selectable differential input range up to 36 Vpk
- IEPE current source (2 mA–4 mA)
- 16–48 MSa per channel acquisition memory
Applications
- Harmonic and noise distortion analysis
- Power analysis and monitoring
- Acoustic characterization of electromechanical devices
- Dynamic signal measurement and recording
Specifications
| Channel/Port Count | 4 |
| Series | DAQ970A/73A Series |
| Channels | 4 |
| For Use With | DAQ970A, DAQ973A |
| Resolution | 24 bit |
| Sampling Rate | 800 kS/s |
| Type | Digitizer |
