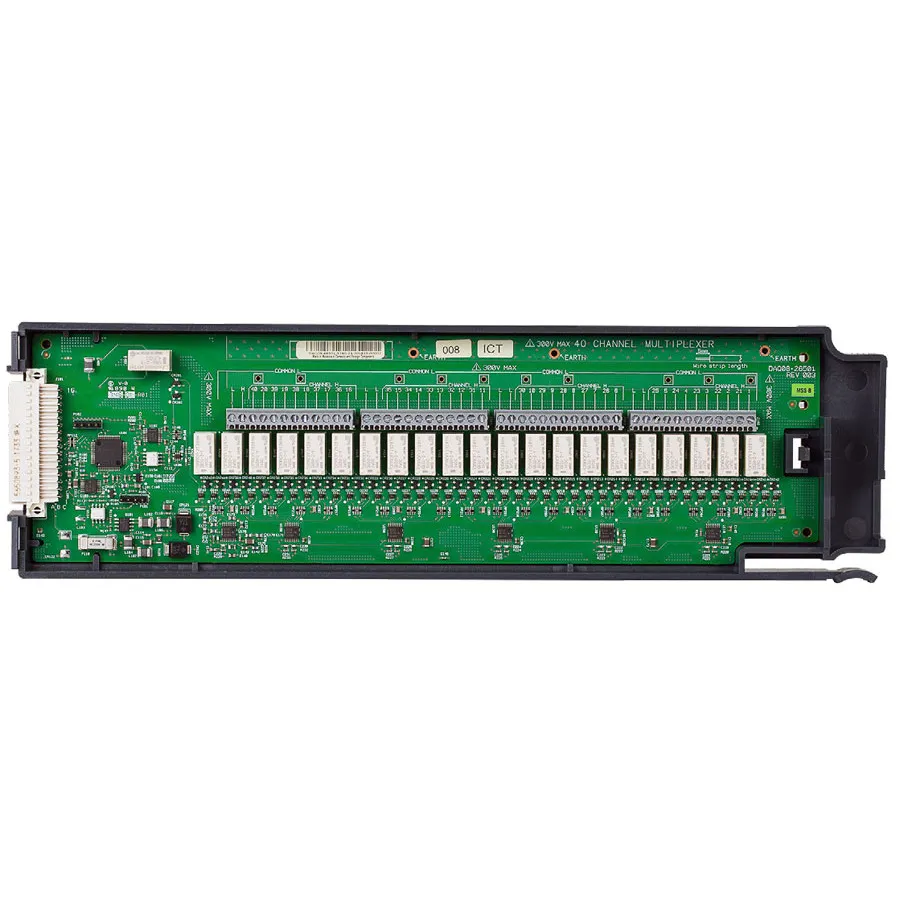

Keysight DAQM908A 40-Channel Single-Ended Multiplexer

Overview

The Keysight DAQM908A is a 40-channel single-ended multiplexer module providing the highest signal-switching density for common-low applications. Each module switches 40 one-wire inputs with support for all two-wire internal measurements except current. The module's low connection floats up to 300V, enabling testing of devices with elevated common-mode voltages. Scan rates of up to 100 channels per second are supported, making this module ideal for rapid automated test sequences.

Key Features

• 40-channel single-ended multiplexer configuration
• 100 channels/second scanning capability
• Common-low single-wire switching architecture
• Support for 2-wire RTD and Thermistor temperature sensors
• Module low connection isolated and floating up to 300V
• Integrates seamlessly with DAQ970A/DAQ973A mainframes

Applications

• Battery and cell testing and characterization
• Component qualification and production testing
• Benchtop measurement automation
• Temperature measurement with thermocouples and thermistors
• General-purpose multi-channel data acquisition
