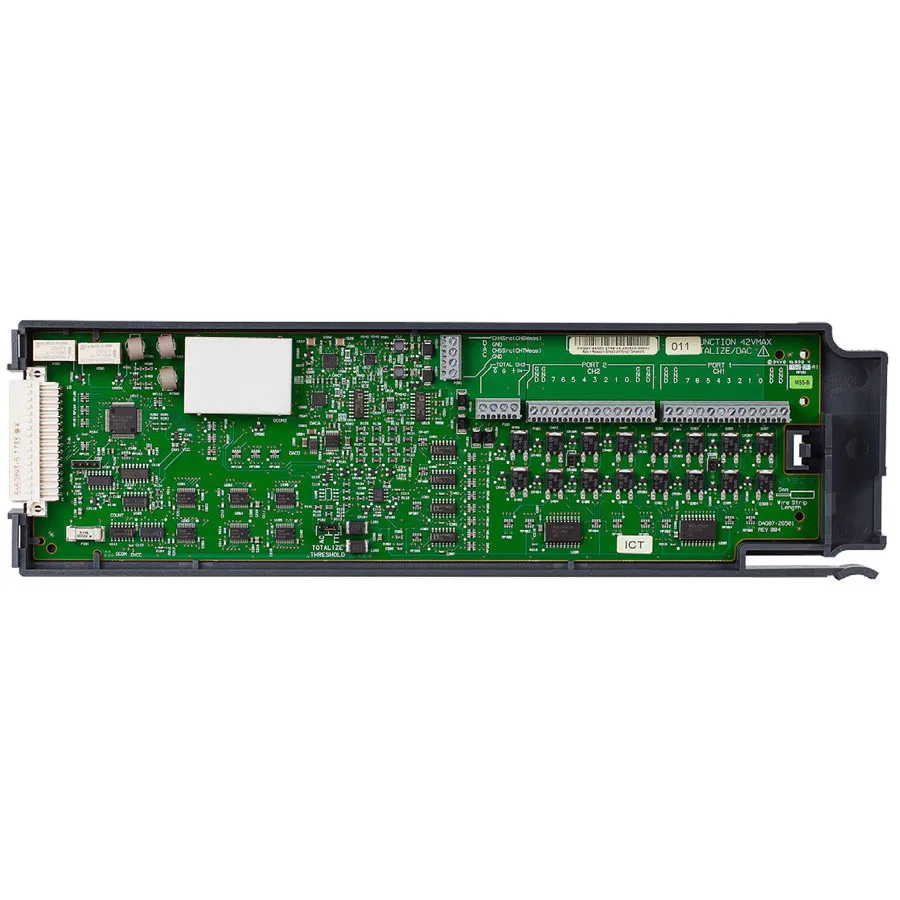

Keysight DAQM907A Multifunction Module
Request a quote
Keysight DAQM907A is a multifunction module combining digital I/O, 100 kHz totalizer, and ±12V analog outputs for flexible sensing and control applications.
Product details
| Model | DAQM907A |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight DAQM907A is a multifunction module that combines digital I/O, event counting, and analog output capabilities on a single earth-referenced unit. It supports a variety of sensing and control applications by integrating two 8-bit digital I/O ports, a 100 kHz gated totalizer for event counting, and two ±12V analog outputs with additional voltage and current sensing channels. Digital inputs and totalizer inputs can be included in automated scans, with alarm limits evaluated continuously for real-time condition monitoring.
Key Features
- 16 bits of digital input and output (two 8-bit ports)
- 100 kHz gated totalizer with 26-bit resolution
- Two ±12V analog outputs with electronic calibration
- Dedicated voltage and current sensing channels
- Continuous alarm limit evaluation for digital and event inputs
- Earth-referenced single module design
Applications
- Microwave switch and attenuator control
- Solenoid and relay actuation
- Event counting from switches and sensors
- Bias voltage generation for device testing
- Analog power supply control and process setpoints
Specifications
| Series | DAQ970A/73A Series |
| Bandwidth | 100 kHz |
| For Use With | DAQ970A, DAQ973A |
| Maximum Voltage | 42 V |
| Type | Multifunction Module |
