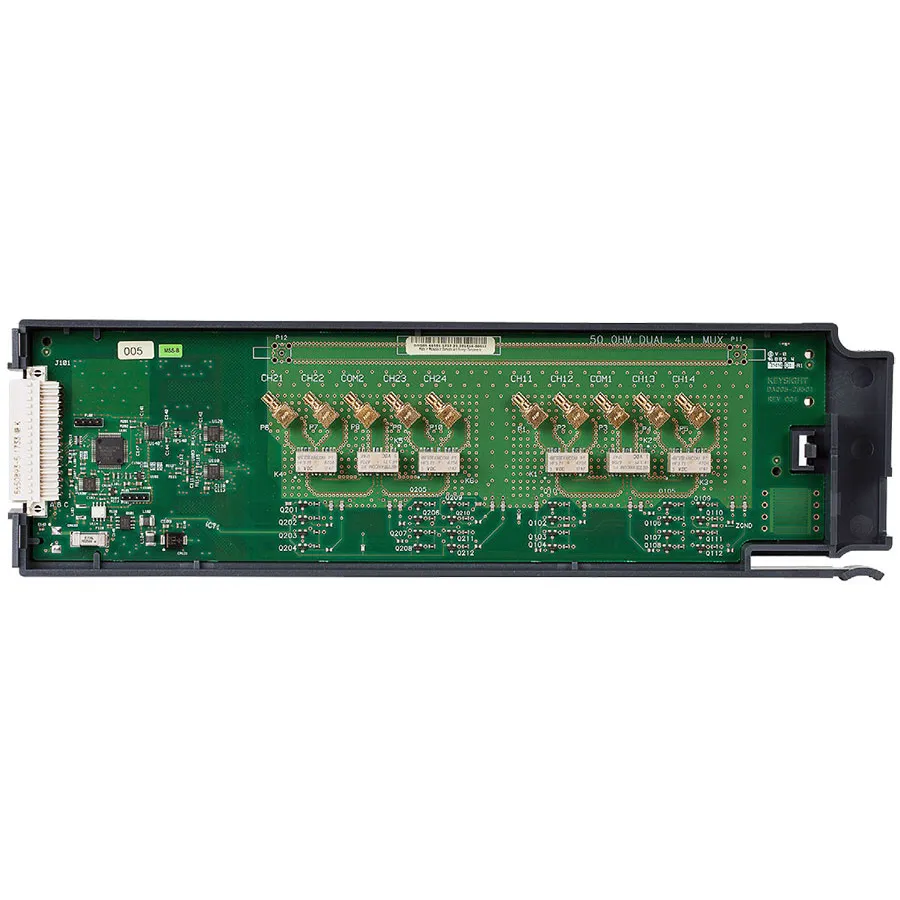

Keysight DAQM905A Dual 4-Channel RF Multiplexer
Request a quote
Keysight DAQM905A is a dual 4-channel RF multiplexer with 2 GHz bandwidth for broadband signal routing between signal generators, oscilloscopes, and spectrum analyzers.
Product details
| Model | DAQM905A |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight DAQM905A RF multiplexer is a dual 4-channel module designed for broadband switching of high-frequency and pulsed signals. It routes test signals between a device under test and various instruments including signal generators, oscilloscopes, and spectrum analyzers. Configured as two independent 1x4 multiplexers, each featuring a common shield and switched center conductor. Multiple banks can be cascaded to create a 16:1 multiplexer configuration within a single frame.
Key Features
- 2 GHz usable bandwidth with SMB connectors; 1 GHz with included BNC-to-SMB adapters
- Dual independent 4-channel RF multiplexer configuration
- 50 Ohm impedance matching
- Cascadable architecture for larger multiplexing topologies
- BNC-to-SMB adapter cables and calibration certificate included
Applications
- High-frequency RF signal routing and distribution
- Broadband pulse signal switching
- Multi-instrument measurement automation
- Production RF testing and characterization
Specifications
| Series | DAQ970A/73A Series |
| Amps | 0.7 A |
| Bandwidth | 2 GHz |
| Channels | 4 |
| For Use With | DAQ970A, DAQ973A |
| Maximum Voltage | 42 V |
| Speed | 60 (ch/sec) |
| Type | Mux Unterminated |
