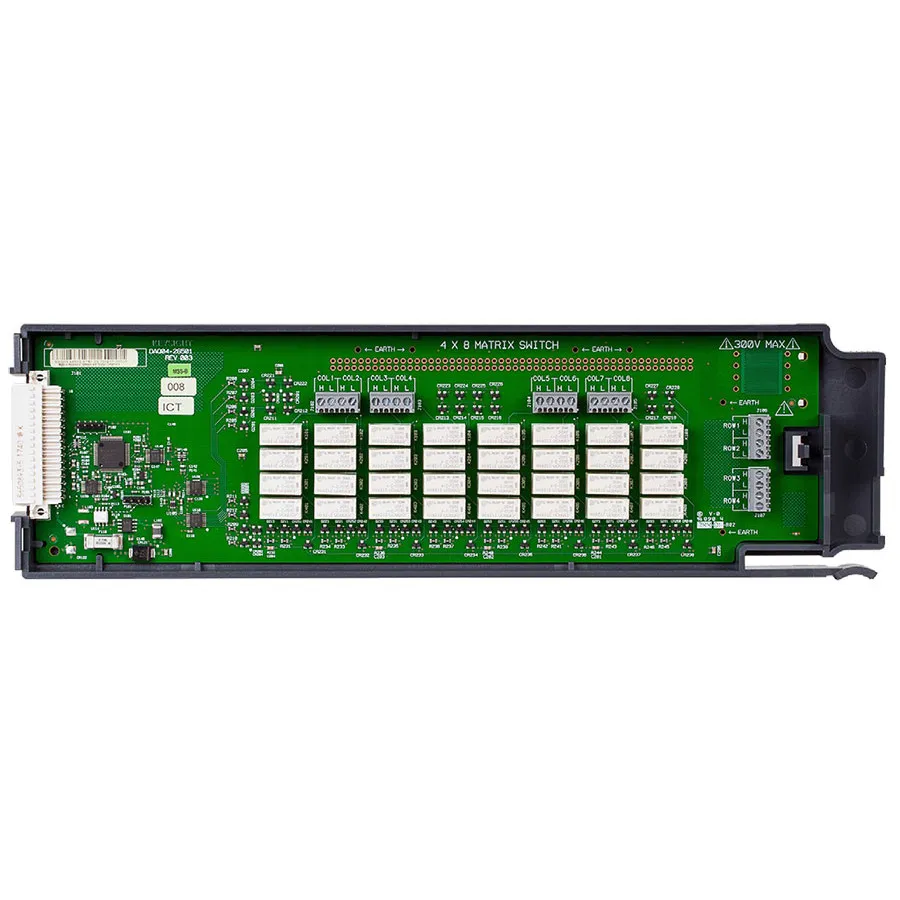

Keysight DAQM904A 4x8 Two-Wire Matrix Switch
Request a quote
Keysight DAQM904A is a 4x8 two-wire matrix switch with 32 cross-points, supporting 300V/1A switching for flexible multi-point DUT signal routing.
Product details
| Model | DAQM904A |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight DAQM904A is a 4x8 two-wire matrix switch module that provides flexible signal routing between a device under test and multiple test instruments. The module allows different instruments to be connected simultaneously to multiple points on a DUT. Rows and columns can be connected between multiple modules to build larger matrices (8x8, 4x16, or larger configurations) with up to 96 cross-points in a single frame.
Key Features
- 4x8 matrix configuration with 32 two-wire cross-points
- 300V, 1A switching capability
- Cascadable architecture for larger matrix topologies
- Integrates with DAQ970A/DAQ973A mainframes
Applications
- Multi-channel device characterization and testing
- Automated test equipment (ATE) signal distribution
- Component qualification and verification
- Production test automation
Specifications
| Series | DAQ970A/73A Series |
| Amps | 1 A |
| Bandwidth | 10 MHz |
| For Use With | DAQ970A, DAQ973A |
| Maximum Voltage | 300 V |
| Speed | 120 (ch/sec) |
| Type | Module 2 Wire |
