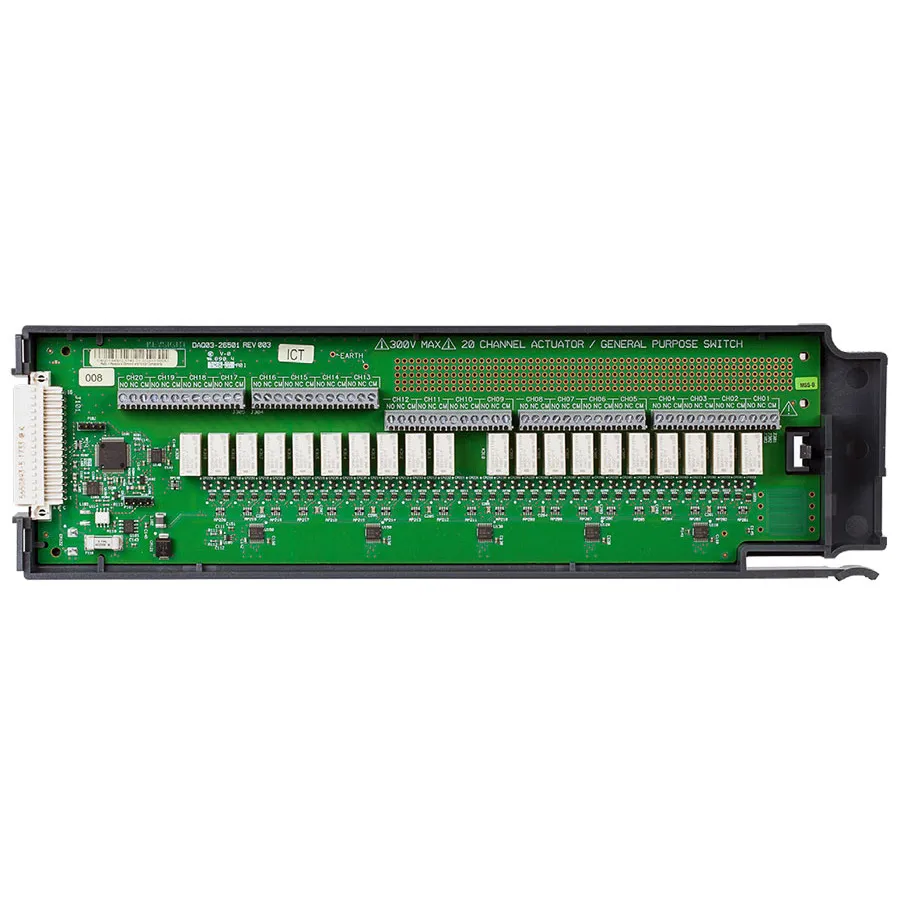

Keysight DAQM903A 20-Channel Switch
Request a quote
Keysight DAQM903A 20-channel actuator/switch module with SPDT latching relays, 300V/1A capability for power control and external relay actuation in test systems.
Product details
| Model | DAQM903A |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight DAQM903A is a general-purpose 20-channel actuator and switch module for data acquisition systems. It features 20 independent single-pole, double-throw (SPDT) latching relays capable of handling up to 50W of power. The module is used to cycle power to devices under test, control indicator lights and status outputs, and actuate external power relays and solenoids in automated testing environments.
Key Features
- 20-channel SPDT (Form C) latching relays
- 300V, 1A contact capability
- Up to 50W power handling per channel
- Suitable for power-line switching applications
- Compatible with matrix and multiplexer modules for custom switch systems
Applications
- Power cycling and control in automated test systems
- Indicator and status light control
- External power relay and solenoid actuation
- Custom switch system configuration with other modules
Specifications
| Series | DAQ970A/73A Series |
| Amps | 1 A |
| Bandwidth | 10 MHz |
| Channels | 20 |
| For Use With | DAQ970A, DAQ973A |
| Maximum Voltage | 300 V |
| Speed | 120 (ch/sec) |
| Type | Actuator/GP Switch |
