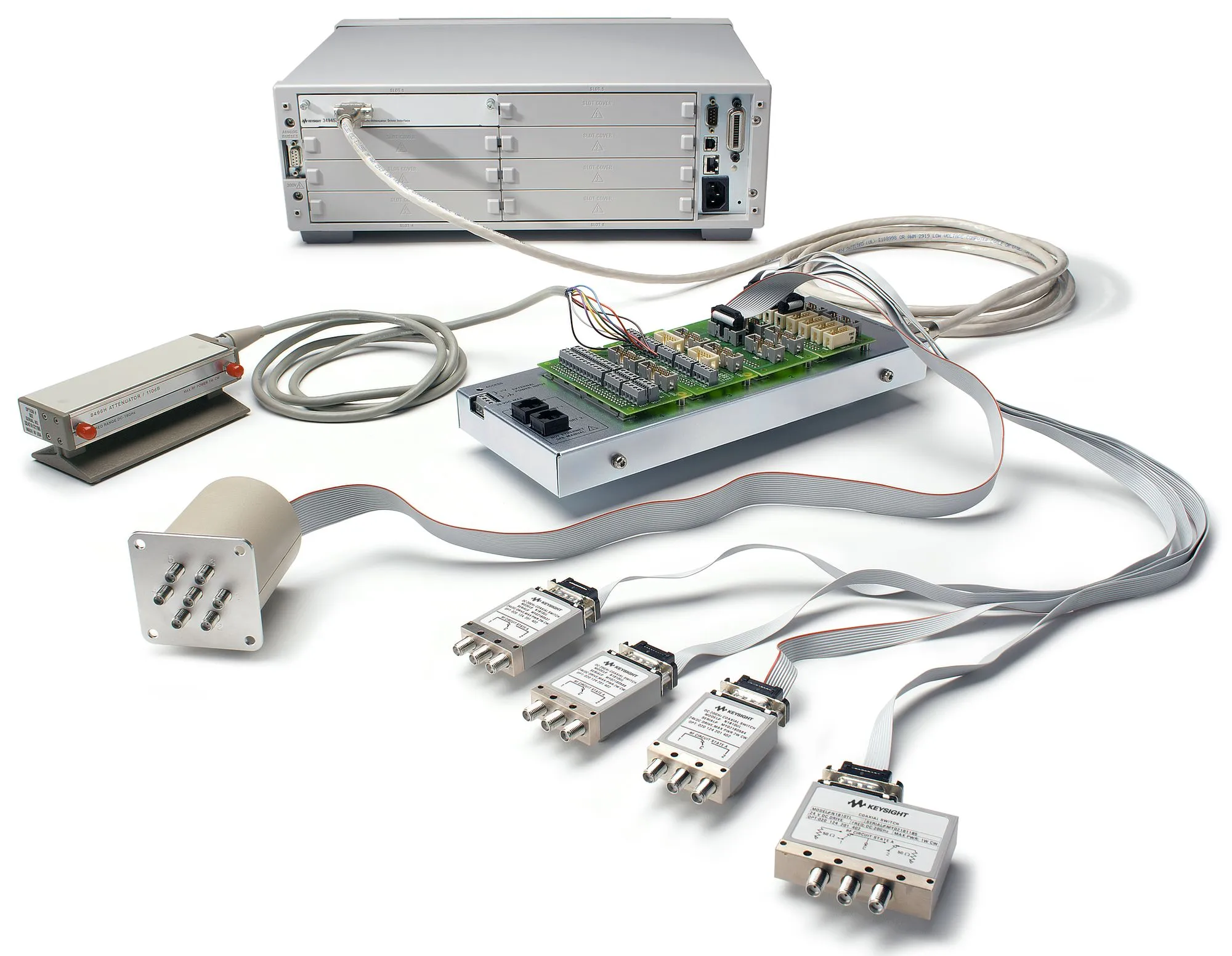

Keysight 34945EXT Remote Extension Module
Request a quote
Keysight 34945EXT remote extension module for the 34945A microwave driver, expanding switch control capacity to 128 total switch coils (64 SPDT switches) when combined.
Product details
| Model | 34945EXT |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight 34945EXT is a remote extension module designed to expand the switching capacity of the 34945A Microwave Switch/Attenuator Driver. When combined with a base 34945A module, it provides control for an additional 64 switch coils, doubling the total capacity to 128 switch coils or 64 SPDT switches. Multiple 34945EXT modules can be cascaded to further expand switching control capabilities.
Key Features
- Remote extension capability for 34945A driver modules
- Drives up to 64 additional external switch coils
- Cascadable for even larger switching configurations
- Easy integration with distribution boards
- Same control signals as 34945A base module
Applications
- Expansion of existing microwave switching systems
- Large-scale RF and microwave test automation
- Multiple switch and attenuator control in complex test systems
Specifications
