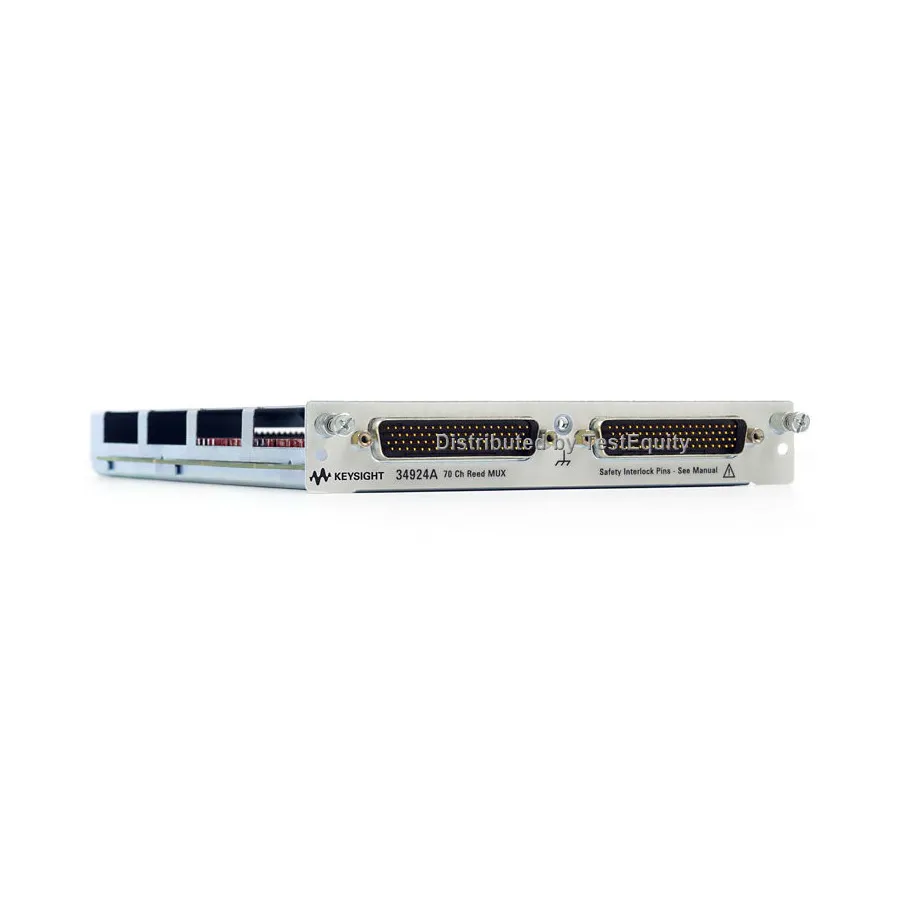

Keysight 34924A 70-Channel Reed Multiplexer Module
Request a quote
Keysight 34924A is a high-density reed relay multiplexer with 70 2-wire channels, ±150V/0.5A capability, and 500 channels-per-second scan rate.
Product details
| Model | 34924A |
| Manufacturer | Keysight |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Keysight 34924A is a high-density, high-speed reed relay multiplexer for the 34980A Multifunction Switch/Measure Unit. It provides 70 channels of scanning capability at up to 500 channels per second, ideal for high-throughput automated test and data logging applications.
Key Features
- 70 2-wire channels with mixed 2- or 4-wire configurations
- High-speed reed relays with 500 channels-per-second scan rate
- ±150V peak, 0.5A switch; 1.5A carry current
- Relay counter for maintenance tracking
- Standard 78-pin Dsub connector
Applications
- High-throughput automated test systems
- High-speed data logging and monitoring
- Large-scale signal multiplexing
Included Accessories
- 78-pin Dsub connectors
- Terminal blocks (3492xT series)
Specifications
| 34924A | 70 Channel Reed+/- 150V0.5A500 |
