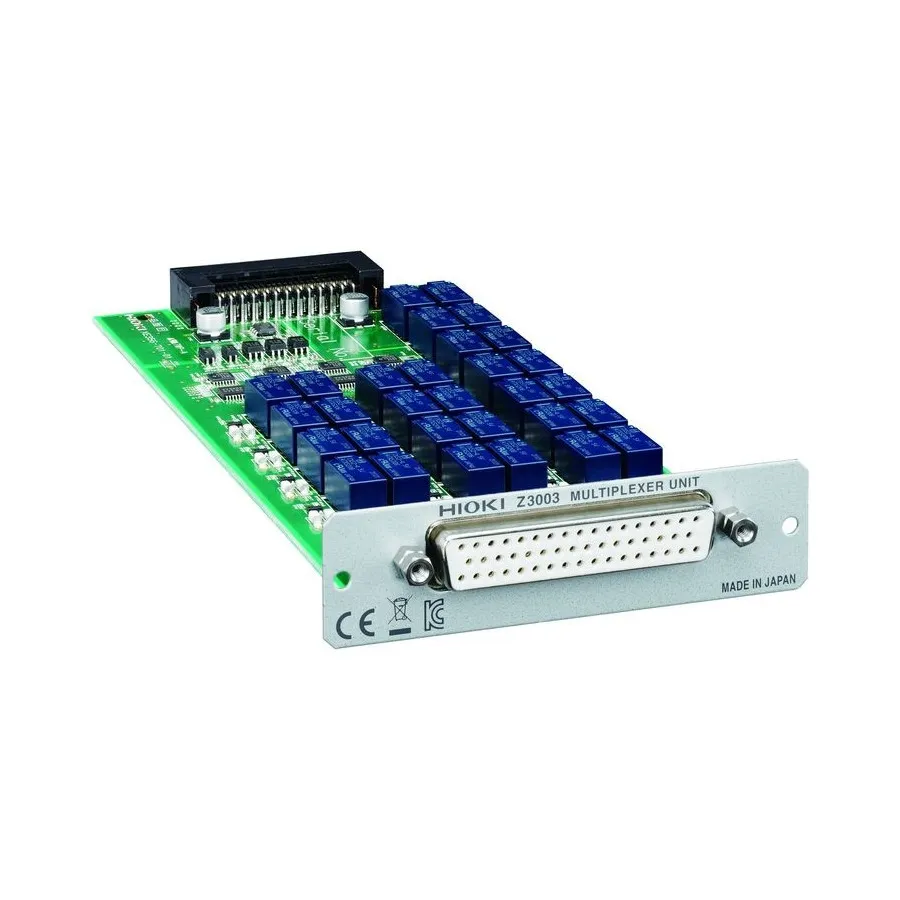

Hioki Z3003 Multiplexer
Request a quote
Hioki Z3003 is a precision multiplexer unit with 10-channel 4-wire or 21-channel 2-wire scanning for multi-point signal assessment and data acquisition.
Product details
| Model | Z3003 |
| Manufacturer | Hioki |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Hioki Z3003 is a multiplexer unit designed for complete assessment of multi-point signals. It features selectable 4-wire (10 channels) or 2-wire (21 channels) input scanning configurations, making it suitable for various signal acquisition and testing applications. The unit uses mechanical relays for signal switching and is designed for use with Hioki RM3545-02 input scanner systems.
Key Features
- Dual scanning modes: 4-wire (10 channels) or 2-wire (21 channels)
- Maximum allowable voltage: 33V RMS, 46.7V peak, or 70V DC
- Maximum allowable power: 30W DC (resistance load)
- Contact type: Mechanical relay for reliable signal switching
- Relay life: 50 million cycles (4-wire), 5 million cycles (2-wire)
- D-SUB 50 pin connector interface
- Compact dimensions: 3.62" W × 0.96" H × 7.17" D
- 1-year warranty period
Applications
- Multi-channel data acquisition systems
- Temperature monitoring networks
- Signal conditioning and switching
- Industrial test and measurement systems
- Research and laboratory instrumentation
Included Accessories
- Instruction manual
- D-SUB 50 pin connector
