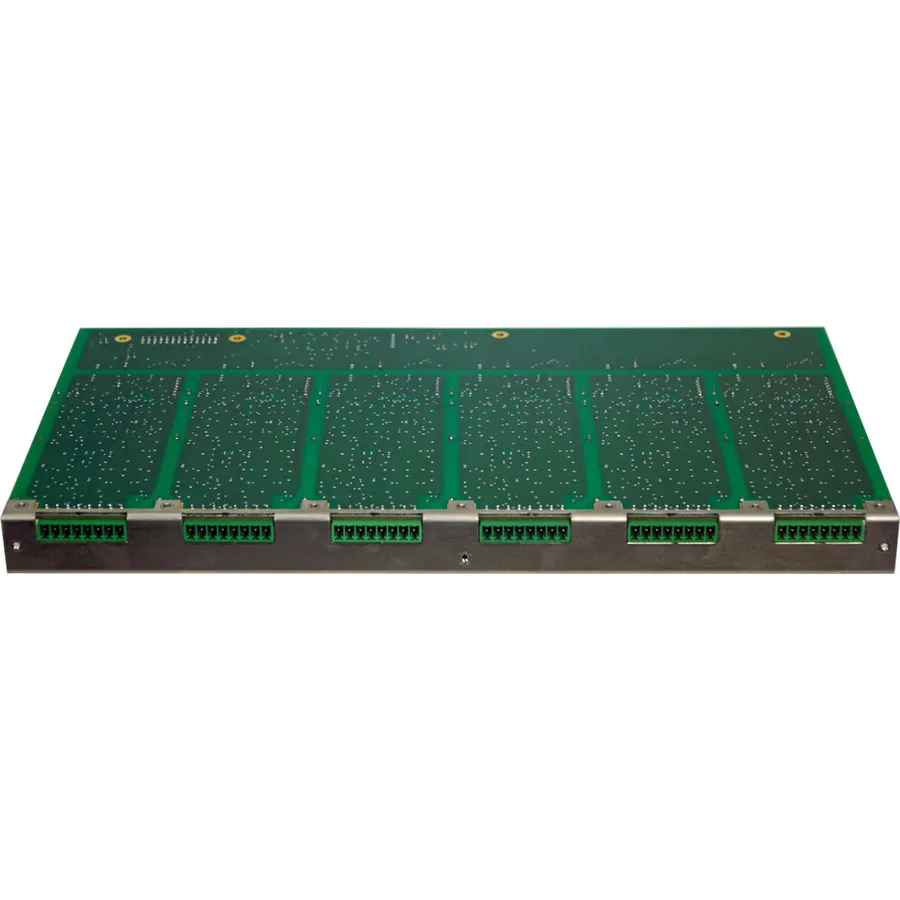

B&K Precision 984402500 Strain Gauge Board
Request a quote
B&K Precision 984402500 Strain Gauge Board with 6 channels, 16-bit resolution, and 100 kS/s sampling rate for high-speed data acquisition systems.
Product details
| Model | 984402500 |
| Manufacturer | B&K Precision |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The B&K Precision 984402500 Strain Gauge Board is a 6-channel analog input module designed for the B&K DAS1700 and 8460 High Speed Data Acquisition Systems. It provides precision measurement of strain gauges, thermocouples, and resistance temperature sensors with simultaneous sampling across all channels.
Key Features
- 6 isolated measurement channels with simultaneous sampling
- 16-bit resolution for accurate measurements
- 100 kS/s sampling rate for high-speed data capture
- Full and half bridge excitation support with ±1V and ±2.5V options
- Maximum input voltage ±25VDC
- Thermocouple input support with cold junction compensation
- PRT sensor compatibility (Pt100/Pt1000)
Applications
- Structural strain and stress measurement
- Temperature monitoring with thermocouples and resistance sensors
- High-speed industrial testing and process monitoring
- Research and development testing
Specifications
| Series | DAS17000/8460 Series |
