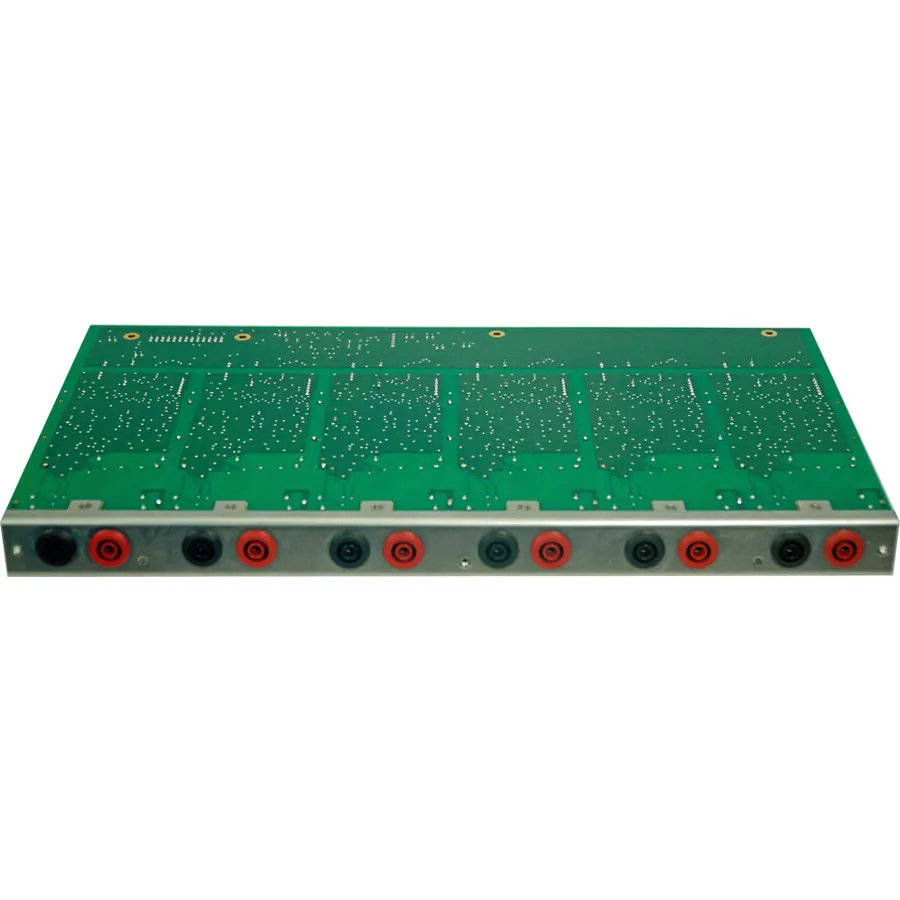

B&K Precision 984401000 Universal Input Board
Request a quote
B&K Precision 984401000 is a 6-channel universal input board with ±500V range, 14-bit resolution, and 1 MS/s sampling for DAS1700/8460 data acquisition systems.
Product details
| Model | 984401000 |
| Manufacturer | B&K Precision |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The B&K Precision 984401000 is a universal input board designed for the DAS1700 and 8460 high-speed data acquisition systems. It provides 6 analog input channels with a measurement range of ±500V (or 424 VRMS), 14-bit resolution, and a sampling rate of 1 MS/s. The board supports multiple measurement types including voltage, current, frequency, thermocouple, counter inputs, and power analysis, making it suitable for a wide range of instrumentation and testing applications.
Key Features
- 6 analog input channels
- Maximum voltage: ±500V DC or 424 VRMS AC
- 14-bit resolution
- 1 MS/s sampling rate
- Voltage measurement capability
- Current measurement capability
- Frequency measurement capability
- Thermocouple input support
- Counter input support
- Power analysis capability
- Compatible with DAS1700 and DAS8460 systems
Applications
- High-speed voltage and current measurements
- Thermocouple temperature monitoring
- Power analysis and monitoring
- Frequency and pulse counting
- Multi-channel data acquisition for test and measurement
Specifications
| Series | DAS17000/8460 Series |
