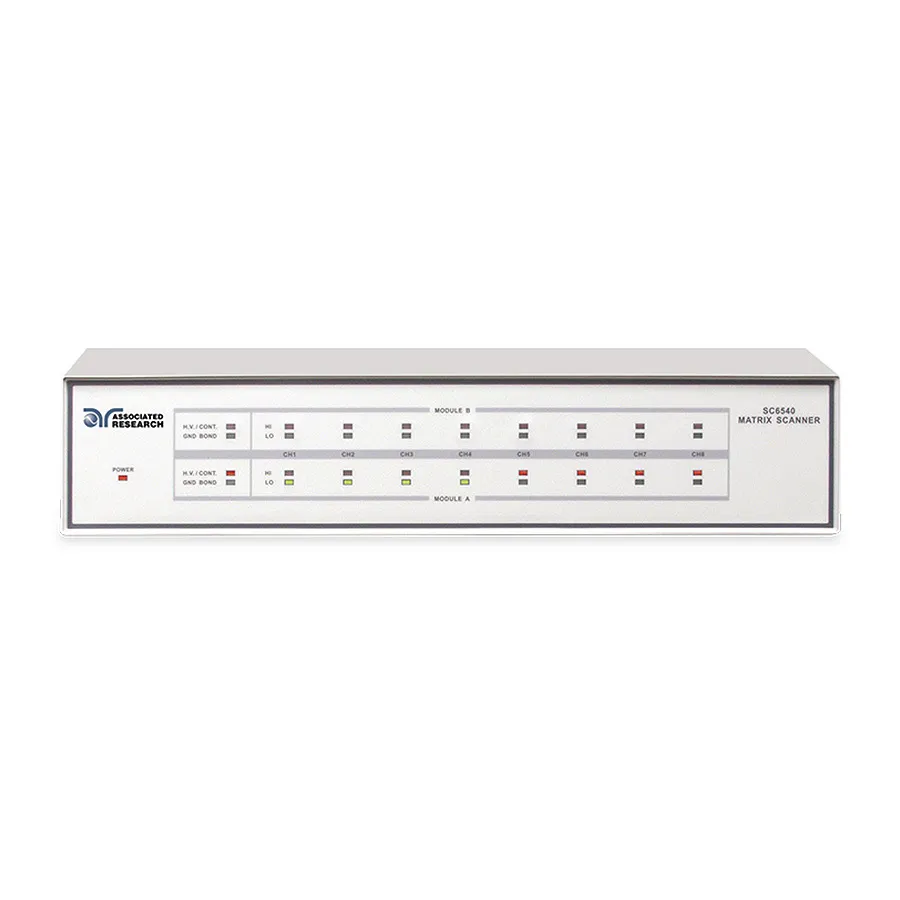

Associated Research SC6540-HH MAIN is a 2U multiplexer with 16 independent high voltage channels, USB/RS-232 interfaces for multi-point hipot testing.
Product details
| Model | SC6540-HH MAIN |
| Manufacturer | Associated Research |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Associated Research SC6540-HH MAIN is a modular scanning matrix multiplexer with 16 independent high voltage channels in a compact 2U design. It interfaces with OMNIA II, HypotULTRA, or LINECHEK instruments to improve production line throughput and expand lab testing capability. Operation is possible from the instrument's front panel or via automation interfaces for direct PC control.
Key Features
- 16 independent high voltage channels in 2U form factor
- USB and RS-232 interfaces (optional Ethernet or GPIB)
- Multiplexer bus output controls up to 4 additional secondary units
- Front panel operation or PC-controlled automation
- Modular design for system expansion and customization
- Supports multi-point testing across all 16 channels simultaneously
- Includes NIST-traceable calibration certificate
Applications
- AC Hipot testing — verify insulation withstand and current limitation under high voltage stress
- DC Hipot testing — perform dielectric withstand testing with leakage current control
- Ground Bond testing — verify integrity of protective earth ground conductors
- Ground Continuity testing — confirm presence of protective earth ground connections
- Insulation Resistance testing — measure total insulation resistance of products
Specifications
| HN | • • |
| HH | • • |
| HG | • • • |
| GN | • • |
| GG | • • |
