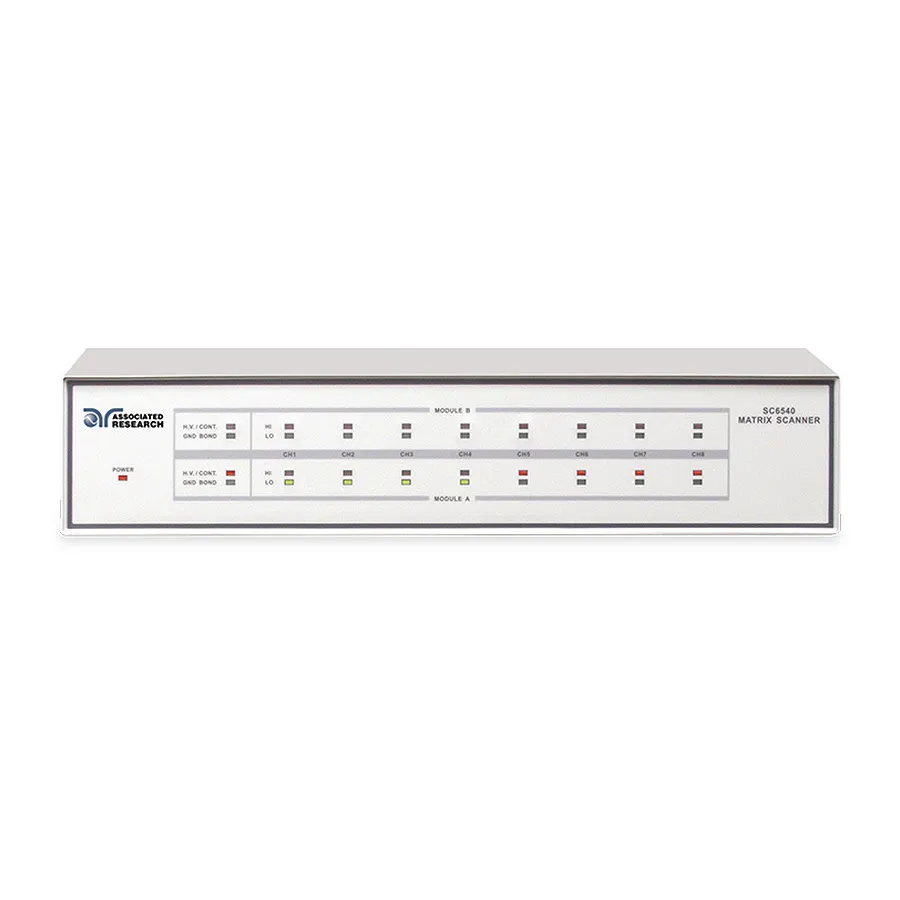

Associated Research SC6540-HG SECONDARY is a 2U multiplexer secondary unit with 8 high voltage and 8 high current channels for expanded test configurations.
Product details
| Model | SC6540-HG SECONDARY |
| Manufacturer | Associated Research |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Associated Research SC6540-HG SECONDARY is a modular scanning matrix multiplexer secondary unit with 8 high voltage channels and 8 high current channels in a compact 2U design. Secondary units expand system capacity by connecting to a MAIN unit, allowing multi-unit configurations for increased testing throughput and flexibility in laboratory and production settings.
Key Features
- 8 independent high voltage channels
- 8 independent high current channels
- Compact 2U form factor for space-efficient installation
- One multiplexer output and one input for daisy-chain expansion
- Connects to SC6540-HG MAIN units for expanded capacity
- Compatible with OMNIA II, HypotULTRA, and LINECHEK instruments
- Includes NIST-traceable calibration certificate
Applications
- AC Hipot testing — verify insulation withstand and current limitation under high voltage stress
- DC Hipot testing — perform dielectric withstand testing with leakage current control
- Ground Bond testing — verify integrity of protective earth ground conductors
- Ground Continuity testing — confirm presence of protective earth ground connections
- Insulation Resistance testing — measure total insulation resistance of products
Specifications
| HN | • • |
| HH | • • |
| HG | • • • |
| GN | • • |
| GG | • • |
