Associated Research SC6540-HG MAIN Multiplexer
Request a quote

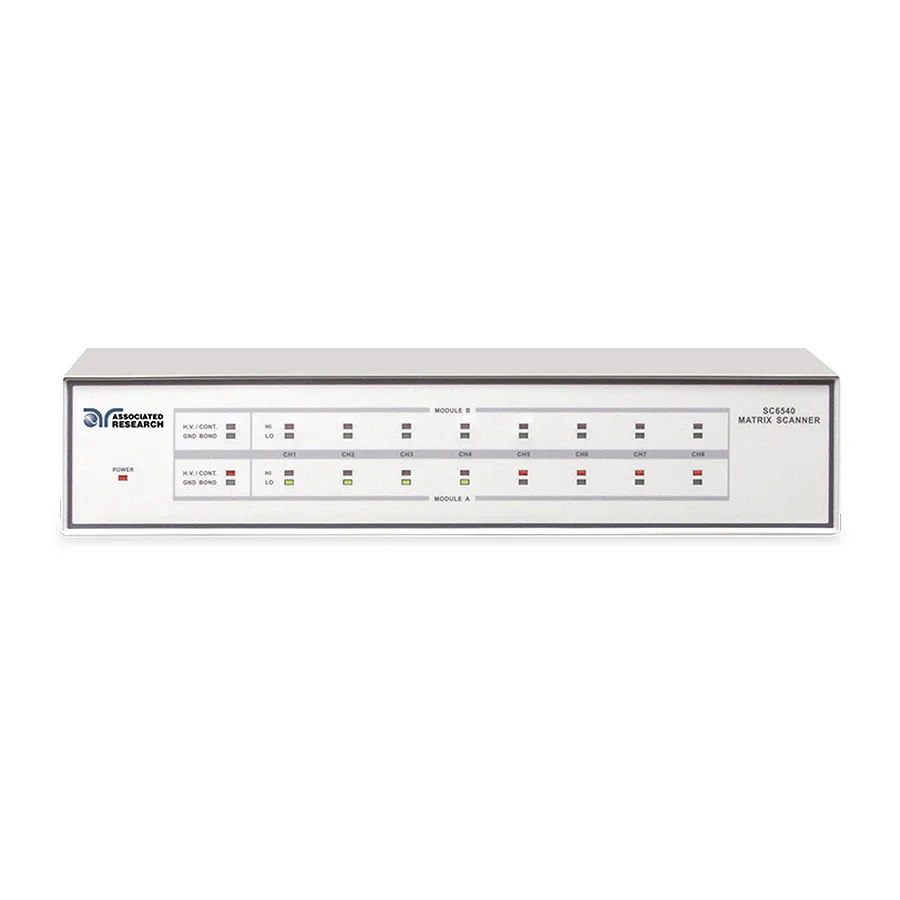

Associated Research SC6540-HG MAIN is a 2U multiplexer with 8 high voltage and 8 high current channels, USB/RS-232 interfaces for hipot and ground bond testing.
Product details
| Model | SC6540-HG MAIN |
| Manufacturer | Associated Research |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Associated Research SC6540-HG MAIN is a modular scanning matrix multiplexer with 8 high voltage channels and 8 high current channels in a compact 2U design. It interfaces with OMNIA II, HypotULTRA, or LINECHEK instruments to improve production line throughput and expand lab testing capability. Operation is possible from the instrument's front panel or via automation interfaces for direct PC control.
Key Features
- 8 independent high voltage channels
- 8 independent high current channels
- Compact 2U form factor for space-efficient installation
- USB and RS-232 interfaces (optional Ethernet or GPIB)
- Multiplexer bus output controls up to 4 additional secondary units
- Front panel operation or PC-controlled automation
- Includes NIST-traceable calibration certificate
Applications
- AC Hipot testing — verify insulation withstand and current limitation under high voltage stress
- DC Hipot testing — perform dielectric withstand testing with leakage current control
- Ground Bond testing — verify integrity of protective earth ground conductors
- Ground Continuity testing — confirm presence of protective earth ground connections
- Insulation Resistance testing — measure total insulation resistance of products
Specifications
| HN | • • |
| HH | • • |
| HG | • • • |
| GN | • • |
| GG | • • |
