Associated Research SC6540-GN Multiplexer Secondary Unit
SC6540-GN secondary unit is an 8-channel high current multiplexer expansion module for multi-point electrical safety testing systems.
Product details
| Model | SC6540-GN SECONDARY |
| Manufacturer | Associated Research |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview

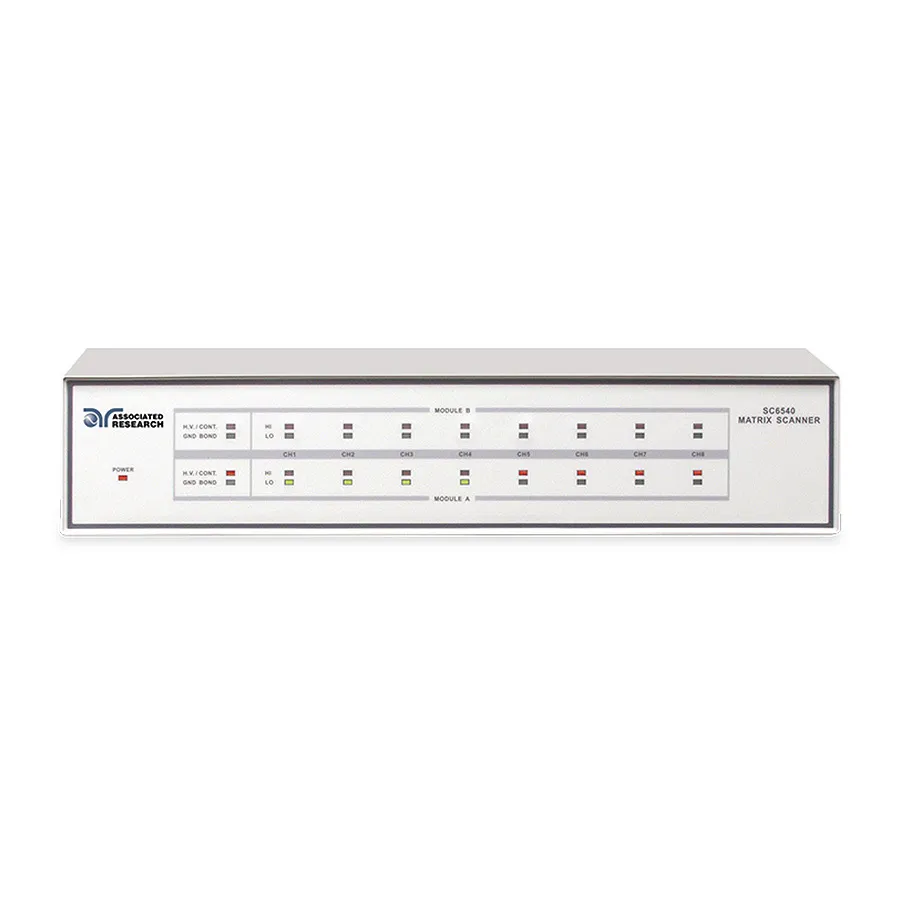

The Associated Research SC6540-GN secondary unit is an 8-channel high current scanning multiplexer designed to expand existing SC6540 testing systems. This secondary unit connects to a main unit via the multiplexer bus, allowing seamless system expansion for large-scale production testing and laboratory applications.
The SC6540-GN secondary features 8 independent high current channels in a compact 2U design and integrates directly with main unit configurations to control multi-point Hipot, Ground Bond, Insulation Resistance, and Line Leakage testing across multiple test stations.
Key Features
- 8 independent high current channels for system expansion
- Compact 2U design matching main unit form factor
- Multiplexer bus connectivity with one input and one output
- Seamless integration with SC6540 main units
- Front panel operation or full PC automation control
- NIST Traceable Calibration Certificate included
Applications
- AC Hipot testing to stress product insulation with high voltage
- DC Hipot testing for DC dielectric withstand verification
- Ground Bond testing to verify protective earth ground conductor integrity
- Ground Continuity testing to confirm earth ground conductor presence
- Insulation Resistance testing to determine total insulation resistance
Specifications
| HN | • • |
| HH | • • |
| HG | • • • |
| GN | • • |
| GG | • • |
