Associated Research SC6540-GG Multiplexer Main Unit
SC6540-GG is a 16-channel high current multiplexer main unit with 40 A rating and modular scanning matrix for multi-point electrical safety testing.
Product details
| Model | SC6540-GG MAIN |
| Manufacturer | Associated Research |
| Category | DAQ Modules & Cards |
| Availability | Made to order |
Description
Overview
The Associated Research SC6540-GG is a 16-channel high current scanning multiplexer main unit designed for electrical safety compliance testing. This modular system interfaces with AR instruments including OMNIA II, HypotULTRA, or LINECHEK to improve production line throughput and expand lab testing capability.

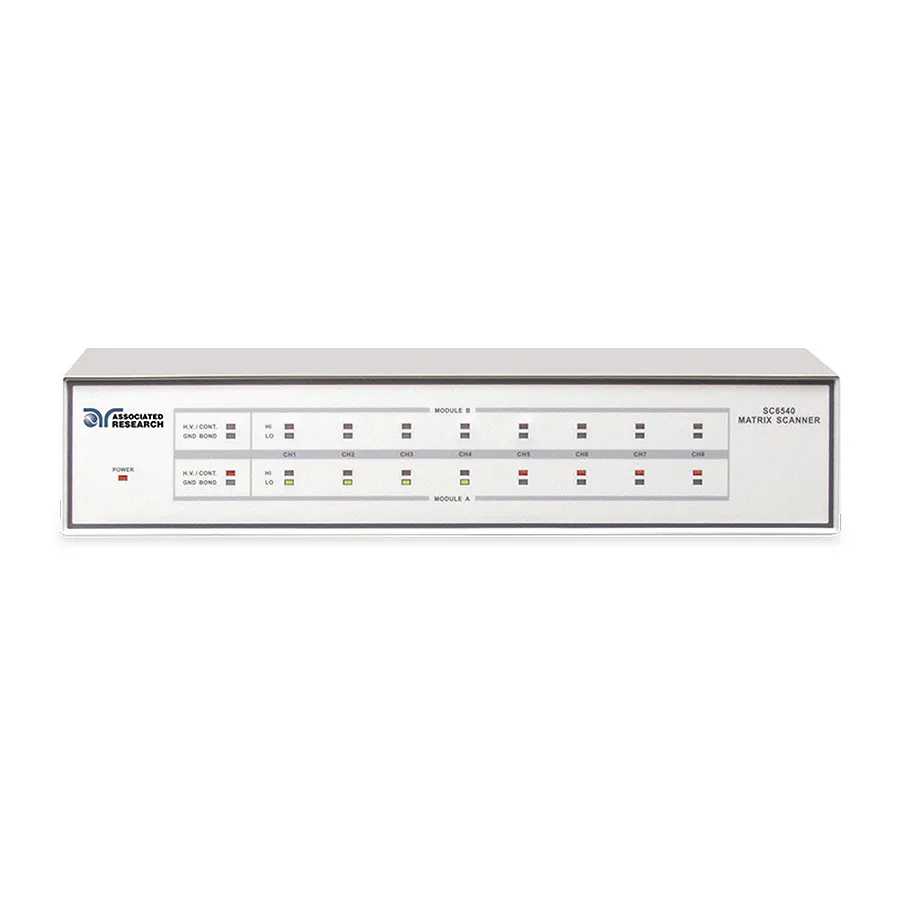

The SC6540-GG main unit features 16 independent high current channels in a convenient 2U design, with a maximum high current rating of 40 A. It can be controlled from the front panel of your AR instrument or through various automation interfaces for direct PC control, and supports USB, RS-232, and optional Ethernet or GPIB connectivity.
Key Features
- 16 independent high current channels rated to 40 A maximum
- Compact 2U design for convenient rack mounting
- USB and RS-232 interfaces with optional Ethernet or GPIB
- Multiplexer bus output controls up to 4 additional secondary units for system expansion
- Front panel operation or full PC automation control
- NIST Traceable Calibration Certificate included
Applications
- AC Hipot testing to stress product insulation with high voltage
- DC Hipot testing for DC dielectric withstand verification
- Ground Bond testing to verify protective earth ground conductor integrity
- Ground Continuity testing to confirm earth ground conductor presence
- Insulation Resistance testing to determine total insulation resistance
Specifications
| HN | • • |
| HH | • • |
| HG | • • • |
| GN | • • |
| GG | • • |
