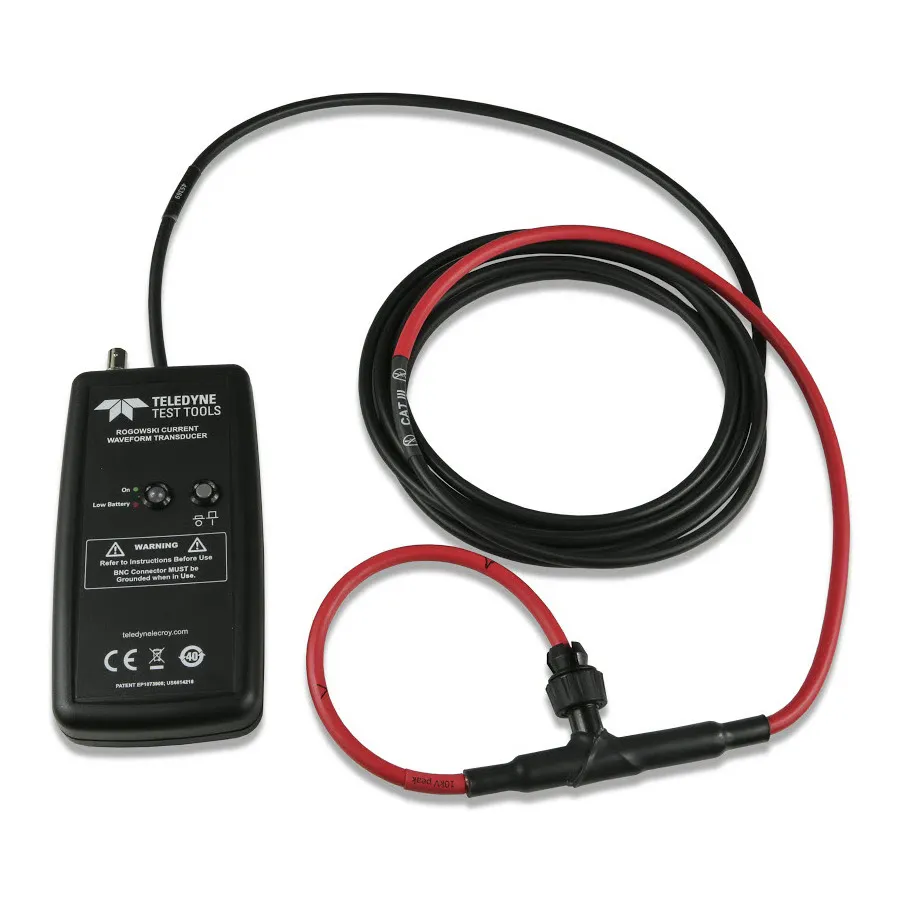

Teledyne LeCroy T3RC6000-LF AC Current Probe
Request a quote
Teledyne LeCroy T3RC6000-LF is a 6,000A AC current probe with 1mV/A sensitivity, 0.055Hz-6.5MHz bandwidth, and exceptional low-frequency performance.
Product details
| Model | T3RC6000-LF |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3RC6000-LF is an AC current oscilloscope probe designed for high-current applications up to 6,000 Amps with exceptional low-frequency performance down to 0.055 Hz. It excels at measuring slow-changing currents and pulses with minimal distortion, offering 10 kV peak insulation and reliable operation from -20°C to +100°C.
Key Features
- Maximum current: 6,000 Amps
- Sensitivity: 1 mV/A
- Extended low frequency bandwidth: 0.055 Hz
- High frequency bandwidth: 6.5 MHz
- Low frequency droop: 0.1% per millisecond or less
- Flexible Rogowski probe coils for easy use
- Low circuit loading
- Operating temperature range: -20°C to +100°C
- Peak insulation: 10 kV
Included Accessories
- Set of Batteries
- Power Line Adapter
- BNC Cable
- Storage Box
Specifications
| Maximum Current | 6000 A |
| Input Coupling | AC |
| Bandwidth | 6.5 MHz |
| Cable Length | 4 m |
| Series | T3RC Series |
| Minimum Current | 1 mA |
| Peak Current | 6000 A |
