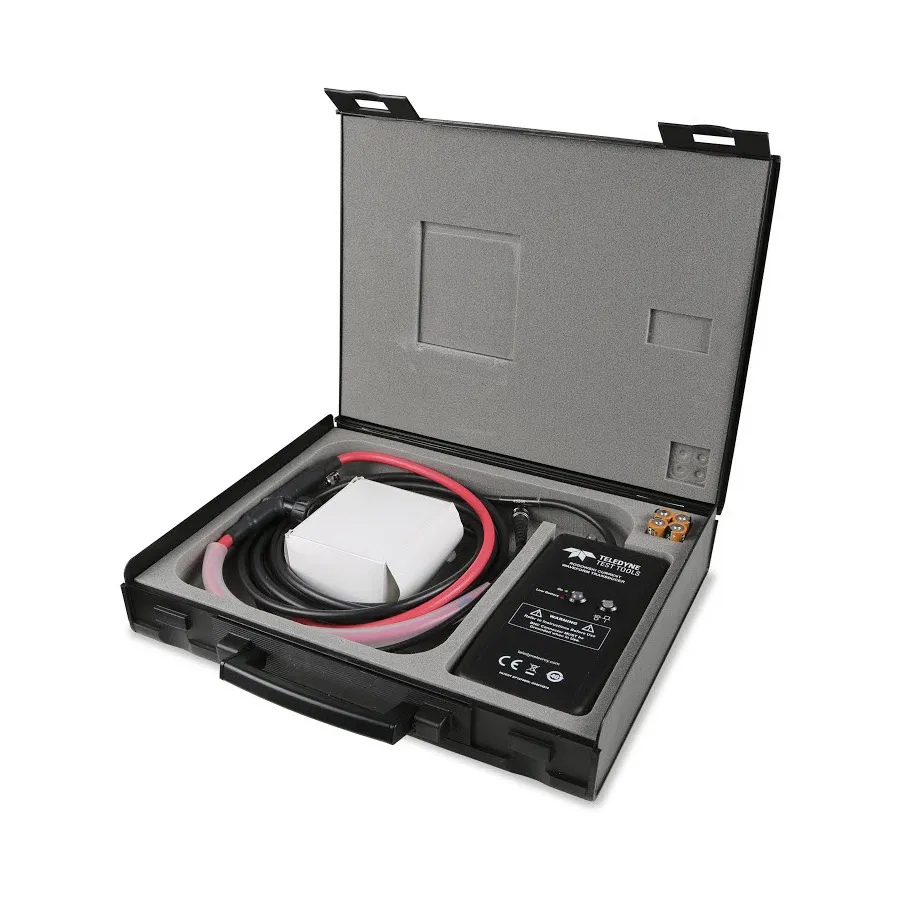

Teledyne LeCroy T3RC3000-LF AC Current Probe
Request a quote
Teledyne LeCroy T3RC3000-LF is a 3,000A AC current probe with 2mV/A sensitivity, 0.11Hz-6.5MHz bandwidth, and extended low-frequency performance.
Product details
| Model | T3RC3000-LF |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3RC3000-LF is an AC current oscilloscope probe designed for applications requiring extended low-frequency performance down to 0.11 Hz, making it ideal for measuring slowly changing currents and pulses. With up to 3,000 Amps capacity, it offers 10 kV peak insulation and operates across a temperature range of -20°C to +100°C.
Key Features
- Maximum current: 3,000 Amps
- Sensitivity: 2 mV/A
- Extended low frequency bandwidth: 0.11 Hz
- High frequency bandwidth: 6.5 MHz
- Low frequency droop: 0.1% per millisecond or less
- Flexible Rogowski probe coils for easy use
- Low circuit loading
- Operating temperature range: -20°C to +100°C
- Peak insulation: 10 kV
Included Accessories
- Set of Batteries
- Power Line Adapter
- BNC Cable
- Storage Box
Specifications
| Maximum Current | 3000 A |
| Input Coupling | AC |
| Bandwidth | 6.5 MHz |
| Cable Length | 4 m |
| Series | T3RC Series |
| Minimum Current | 2 mA |
| Peak Current | 3000 A |
