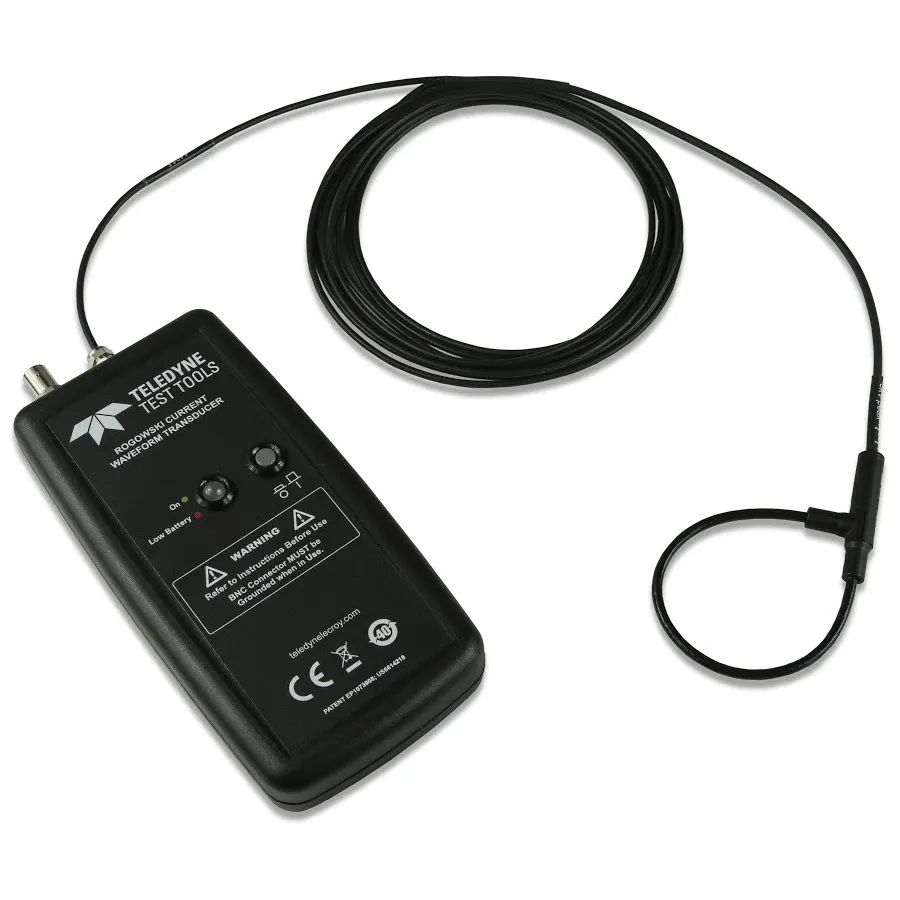

Teledyne LeCroy T3RC3000-HF AC Current Probe
Request a quote
Teledyne LeCroy T3RC3000-HF is a 3,000A AC current probe with 2mV/A sensitivity, 3Hz-23MHz dual bandwidth, and flexible Rogowski coil design.
Product details
| Model | T3RC3000-HF |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3RC3000-HF is an AC current oscilloscope probe designed for general-purpose current measurement applications up to 3,000 Amps. Featuring a flexible Rogowski coil design, it provides low circuit loading and operates reliably across a wide temperature range from -40°C to +125°C with 5 kV peak insulation.
Key Features
- Maximum current: 3,000 Amps
- Sensitivity: 2 mV/A
- Low frequency bandwidth: 3 Hz
- High frequency bandwidth: 23 MHz
- Flexible Rogowski probe coils for easy use
- Low circuit loading
- Operating temperature range: -40°C to +125°C
- Peak insulation: 5 kV
Included Accessories
- Set of Batteries
- Power Line Adapter
- BNC Cable
- Storage Box
Specifications
| Maximum Current | 3000 A |
| Input Coupling | AC |
| Bandwidth | 23 MHz |
| Cable Length | 4 m |
| Series | T3RC Series |
| Minimum Current | 2 mA |
| Peak Current | 3000 A |
