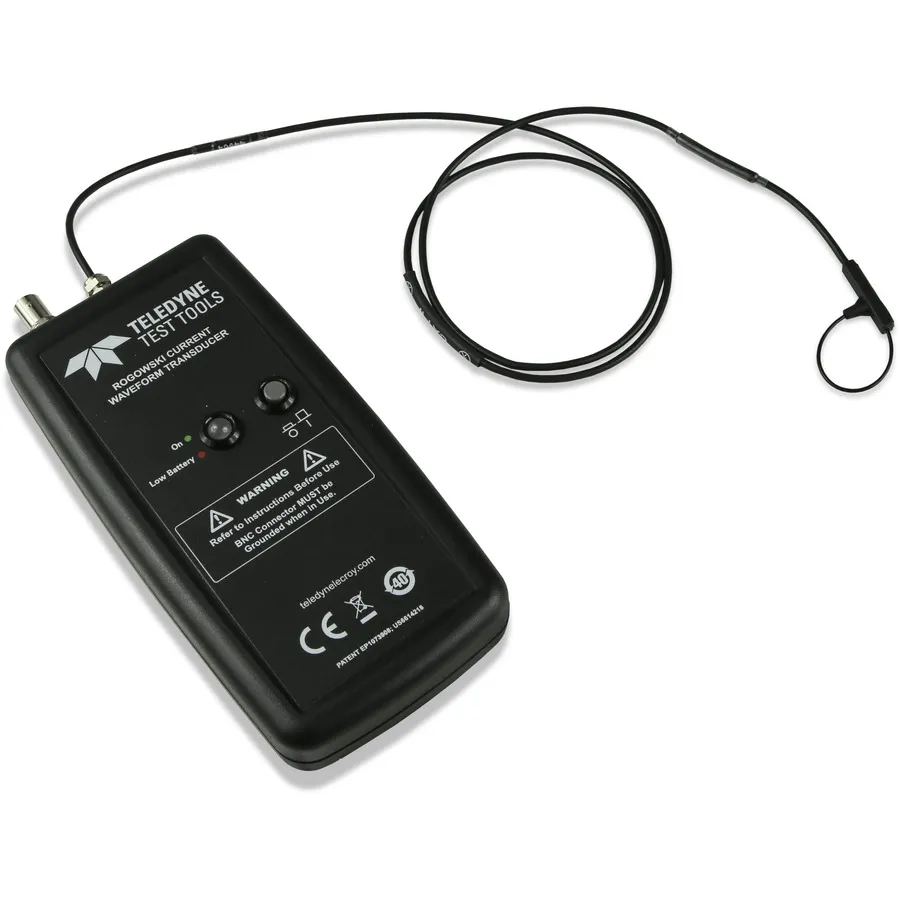

Teledyne LeCroy T3RC0300-UM AC Current Probe
Request a quote
Teledyne LeCroy T3RC0300-UM AC current probe measures up to 300A with 20mV/A sensitivity, 9.2Hz-30MHz bandwidth, compact design.
Product details
| Model | T3RC0300-UM |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3RC0300-UM is an AC current probe rated for measuring currents up to 300 amperes with a sensitivity of 20mV/A. Designed specifically for high-current embedded power applications, this probe incorporates an ultra-compact 1.7mm cross-section sense coil that fits easily around large power components. The broad bandwidth from 9.2Hz to 30MHz enables comprehensive characterization of power electronics systems from low-frequency switching to high-frequency ripple analysis.
Key Features
- Measures AC current up to 300 amperes
- Sensitivity: 20mV/A
- Low-frequency bandwidth: 9.2Hz
- High-frequency bandwidth: 30MHz
- Ultra-compact 1.7mm cross-section sense coil
- Fits around power components such as inductors, capacitors, and MOSFETs
- Flexible probe coils for precise positioning
- Low circuit loading minimizes circuit perturbation
- Battery or AC adapter operation
- 1-meter BNC cable for oscilloscope connection
Applications
- High-current power supply and converter measurement
- Industrial motor and drive current analysis
- Embedded power electronics characterization
- High-current TO220 and power package measurement
- Switching and ripple current analysis
Included Accessories
- Set of batteries
- Power line adapter
- BNC cable (1m)
- Storage box
Specifications
| Maximum Current | 300 A |
| Input Coupling | AC |
| Bandwidth | 30 MHz |
| Cable Length | 1 m |
| Series | T3RC Series |
| Minimum Current | 20 mA |
| Peak Current | 300 A |
