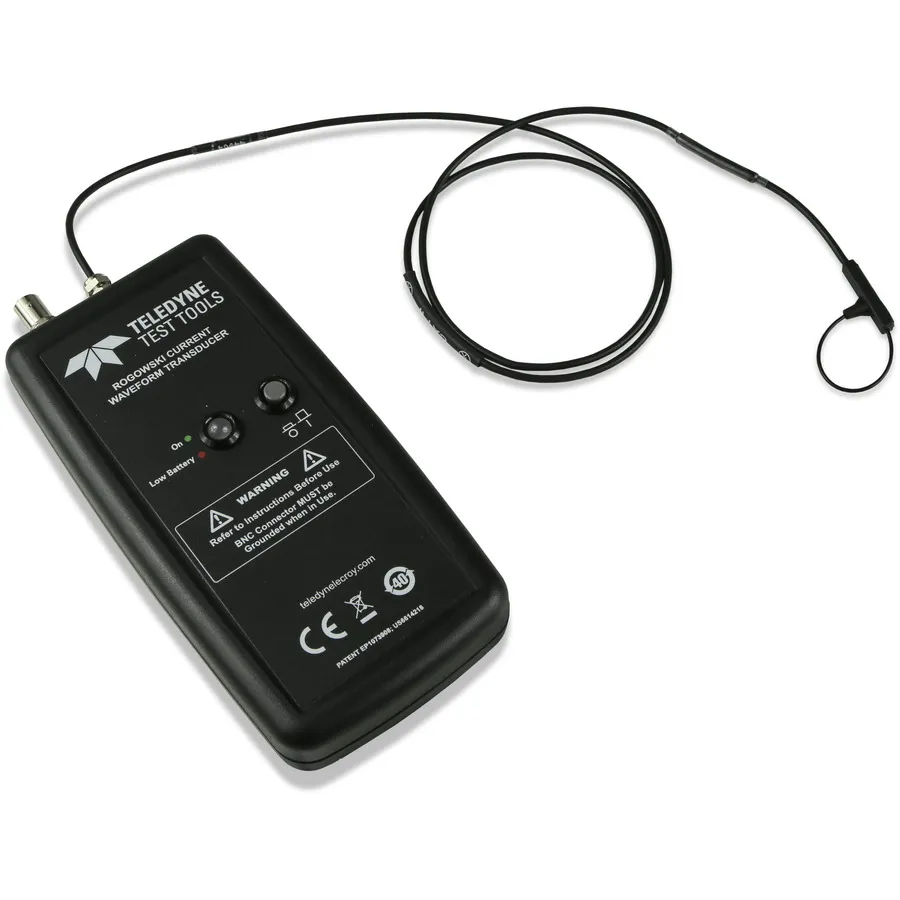

Teledyne LeCroy T3RC0120-UM AC Current Probe
Request a quote
Teledyne LeCroy T3RC0120-UM AC current probe with 120A capacity, 50mV/A sensitivity, 34Hz-30MHz bandwidth, compact 1.7mm coil.
Product details
| Model | T3RC0120-UM |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3RC0120-UM is an AC current probe designed for measuring currents up to 120 amperes with a sensitivity of 50mV/A. This probe features an ultra-compact sense coil measuring only 1.7mm in cross-section, making it ideal for embedded power applications where space is constrained. The probe's high-frequency capability up to 30MHz and low-frequency response from 34Hz provide comprehensive current monitoring across diverse power electronics applications.
Key Features
- Measures AC current up to 120 amperes
- Sensitivity: 50mV/A
- Low-frequency bandwidth: 34Hz
- High-frequency bandwidth: 30MHz
- Ultra-compact 1.7mm cross-section sense coil
- Flexible probe coils for precise positioning
- Low circuit loading minimizes circuit perturbation
- Battery or AC adapter operation
- 1-meter BNC cable for oscilloscope connection
Applications
- Embedded power supply and converter measurement
- High-frequency switching circuit analysis
- Power component characterization (inductors, capacitors, MOSFETs)
- Compact circuit current monitoring
- Motor and drive current analysis
Included Accessories
- Set of batteries
- Power line adapter
- BNC cable (1m)
- Storage box
Specifications
| Maximum Current | 120 A |
| Input Coupling | AC |
| Bandwidth | 30 MHz |
| Cable Length | 1 m |
| Series | T3RC Series |
| Minimum Current | 50 mA |
| Peak Current | 120 A |
