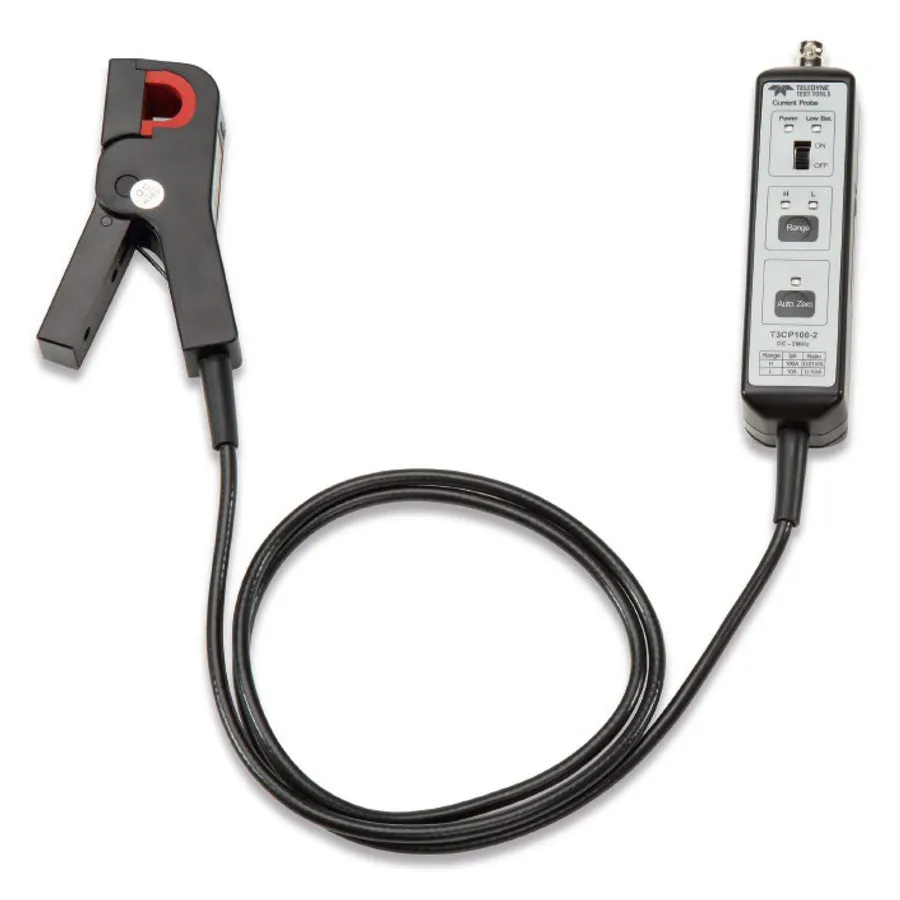

Teledyne LeCroy T3CP100-2 Current Probe
Request a quote
Teledyne LeCroy T3CP100-2 is an AC/DC current probe with 2 MHz bandwidth, dual range (10/100 A), 600 V rating, 12 mm jaw, and fast 175 ns risetime.
Product details
| Model | T3CP100-2 |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3CP100-2 is an AC/DC coupled current probe designed for accurate current measurements with oscilloscopes. This active probe offers dual-range operation to measure both low and high currents with excellent accuracy and fast risetime, making it suitable for a wide range of circuit testing and diagnostics applications.
Key Features
- AC/DC coupled active current probe
- Dual-range measurement: 10 A Peak / 7 A rms or 100 A Peak / 70 A rms
- DC to 2 MHz bandwidth
- Fast risetime of ≤175 ns
- Maximum conductor voltage rating of 600 V
- 12 mm measurement jaw size
- Auto-zero function with indicator button
- Low test circuit loading
- Compatible with 1 MΩ BNC input oscilloscopes
- Powered by 9 V battery or included wall power supply
Included Accessories
- Universal 12 V DC / 1 A power supply
- 1 m BNC to BNC cable
- Instruction manual
- Calibration report
Specifications
| Maximum Current | 70.7 A |
| Input Coupling | AC/DC |
| Bandwidth | 2 MHz |
| Maximum Input Voltage | 600 V |
| Safety Rating | CAT1 | CAT2 | CAT3 |
| Cable Length | 1 m |
| Series | T3CP Series |
| Maximum Wire Size | 12 mm |
| Minimum Current | 50 mA |
| Peak Current | 100 A |
