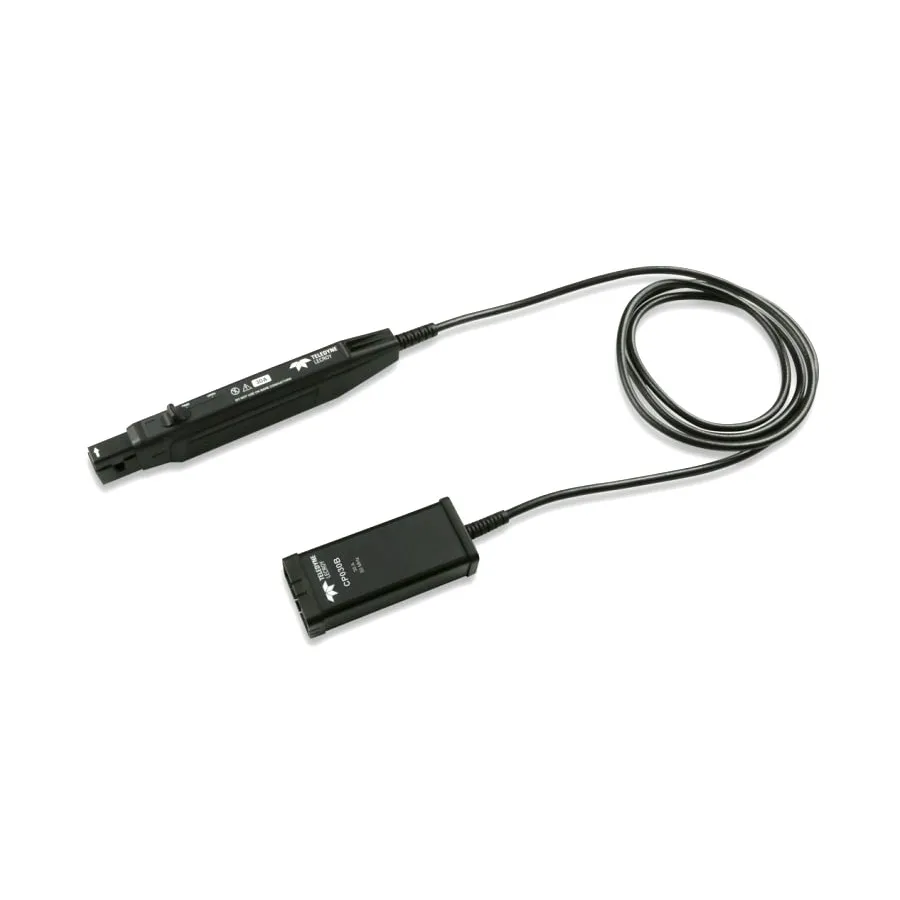

Teledyne LeCroy CP030B High Sensitivity Current Probe
Request a quote
Teledyne LeCroy CP030B is a high-sensitivity current probe with 50 MHz bandwidth, 30A RMS capability, and 1 mA/div sensitivity for power supply testing.
Product details
| Model | CP030B |
| Manufacturer | Teledyne LeCroy |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy CP030B is a high-sensitivity current probe designed for accurate AC/DC current measurement in oscilloscope-based analysis. It is commonly used in power supply design, motor drive analysis, electric vehicle testing, and uninterruptible power supply development and troubleshooting.
Key Features
- 30 A RMS continuous current measurement capability
- 50 A peak pulse capability
- 50 MHz bandwidth
- High sensitivity of 1 mA/div
- ProBus active probe interface with automatic scaling
- 1.5-meter cable length
- Powered through ProBus connection, no external power required
- Built-in Degauss and Autozero functions accessible from oscilloscope interface
Applications
- Switching power supply design and testing
- Motor drive analysis and optimization
- Electric vehicle power system testing
- Uninterruptible power supply development
- AC, DC, and impulse current measurement
Included Accessories
- 1.5-meter ProBus cable
Specifications
| Maximum Current | 30 A |
| Input Coupling | AC/DC |
| Bandwidth | 50 MHz |
| Series | CP Series |
| Interface | ProBus, 1 Mohm |
| Length | 1.5 m |
| Type | AC/DC |
| Warranty | 1 Year |
