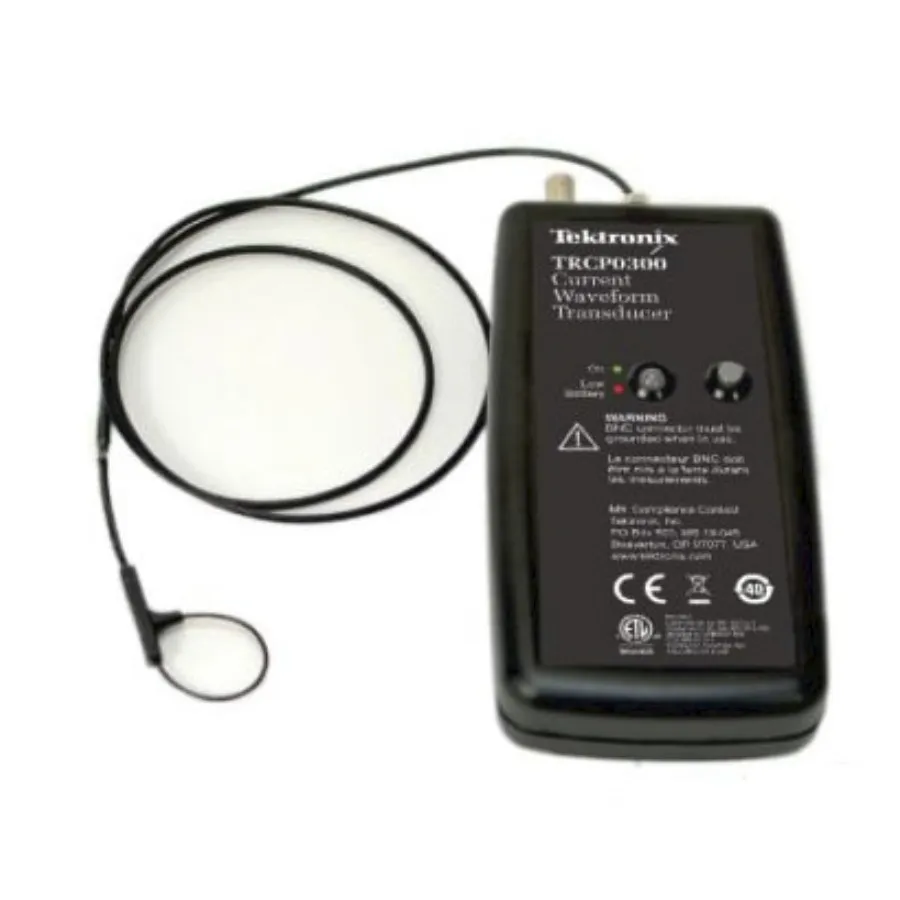

Tektronix TRCP0300 AC Rogowski Current Probe
Request a quote
Tektronix TRCP0300 AC Rogowski current probe with flexible coil design, BNC connector, and measurement range 250 mA to 300 A.
Product details
| Model | TRCP0300 |
| Manufacturer | Tektronix |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TRCP0300 is an AC Rogowski current probe featuring a thin, flexible coil design that can be easily wrapped around small test points such as transistor legs or large connection points like bus bars. The probe connects via BNC connector to any instrument with BNC interface support.
Key Features
- AC-only measurement capability
- Thin, flexible coil design for easy wrapping around test points
- BNC connector compatible with standard test equipment
- Suitable for small form factor components and large bus bars
- Part of the TRCP Series Rogowski probe family
Applications
- Measuring current on MOSFET and IGBT legs
- Bus bar current measurement
- Power electronics testing
- Component-level AC current analysis
Specifications
| Maximum Current | 300 A |
| Bandwidth | 30 MHz |
| Series | TRCP Series |
| Attenuation | 50X |
| Minimum Current | 250 mA |
| Peak Current | 300 A |
| Series Compatibility | 2 SERIES MSO MIXED SIGNAL OSCILLOSCOPE, 3 SERIES MDO MIXED DOMAIN OSCILLOSCOPE, DPO/DSA/MSO70000, DPO7000C, MDO3000, MDO4000C, MSO/DPO2000, MSO/DPO2000B, MSO/DPO3000, MSO/DPO4000, MSO/DPO5000, MSO/DPO5000B, MSO4000B, TBS1000/TBS1000B/TBS1000B-EDU, TBS2000 |
