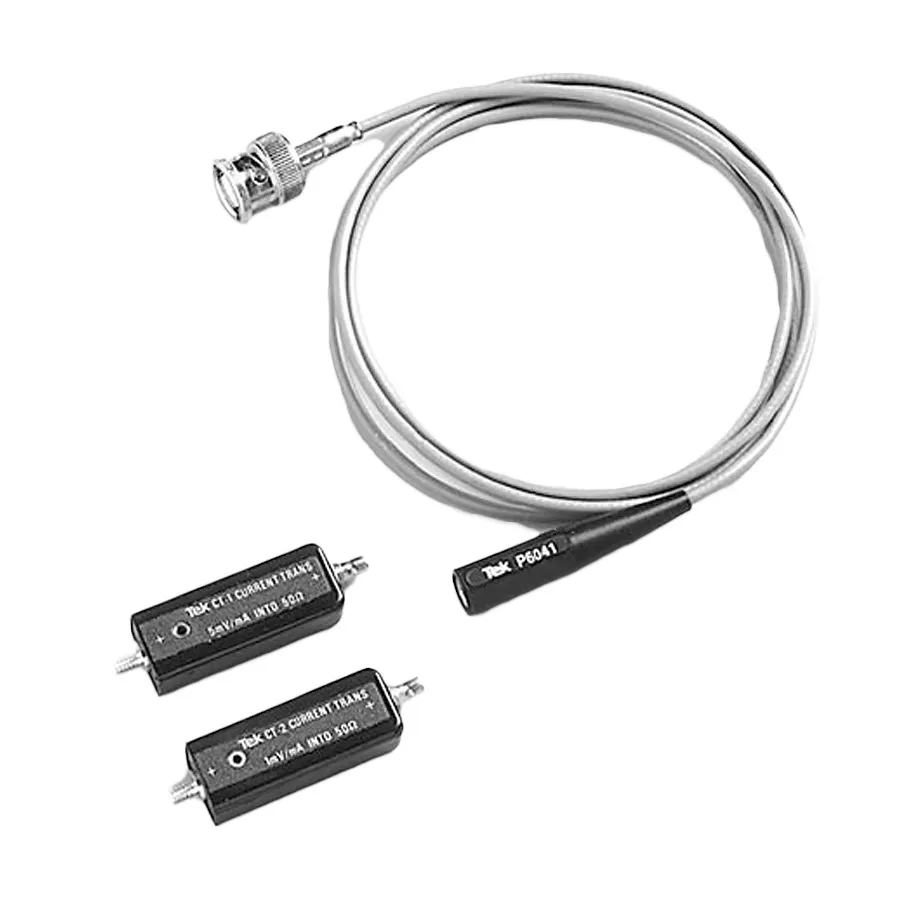

Tektronix CT1 High-Frequency Current Probe
Request a quote
Tektronix CT1 is a high-bandwidth AC current probe with 1 GHz bandwidth, 12 A maximum current, and ultra-low inductance for high-frequency oscilloscope measurements.
Product details
| Model | CT1 |
| Manufacturer | Tektronix |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Tektronix CT1 is a high-frequency AC current probe designed for oscilloscope measurements. It provides ultra-low inductance and a very small form factor, making it ideal for characterizing current waveforms in high-frequency applications and tight spaces.
Key Features
- High bandwidth from 25 kHz to 1 GHz
- Ultra-low inductance design
- Very small form factor (1.78 mm) for confined spaces
- Maximum current rating: 12 A
- Supports current ranges up to 450 mA
- Rise time: 350 ps
- Operating voltage: 30V
Applications
- High-frequency circuit analysis
- Current waveform characterization
- Power electronics testing
- Signal integrity measurements
Specifications
| Maximum Current | 450 mA |
| Bandwidth | 1 GHz |
| Maximum Input Voltage | 30 V |
| Series | CT Series |
| Dimensions | 1.52 x 0.59 x 0.406 in. |
| Maximum Wire Size | 1.78 mm |
| Minimum Current | 200 mA |
| Peak Current | 12 A |
| Probe Length | 1.06 m |
| Risetime | 0.35 ns |
| Series Compatibility | DPO/DSA/MSO70000, DPO7000C, MDO3000, MDO4000C, MSO/DPO2000, MSO/DPO2000B, MSO/DPO3000, MSO/DPO4000, MSO/DPO5000, MSO/DPO5000B, MSO4000B, TBS1000/TBS1000B/TBS1000B-EDU, TBS2000, TBS2000, TDS3000, TDS5000, TDS6000, TDS7000, THS3000, and TPS2000 |
| Warranty | 1 Year |
