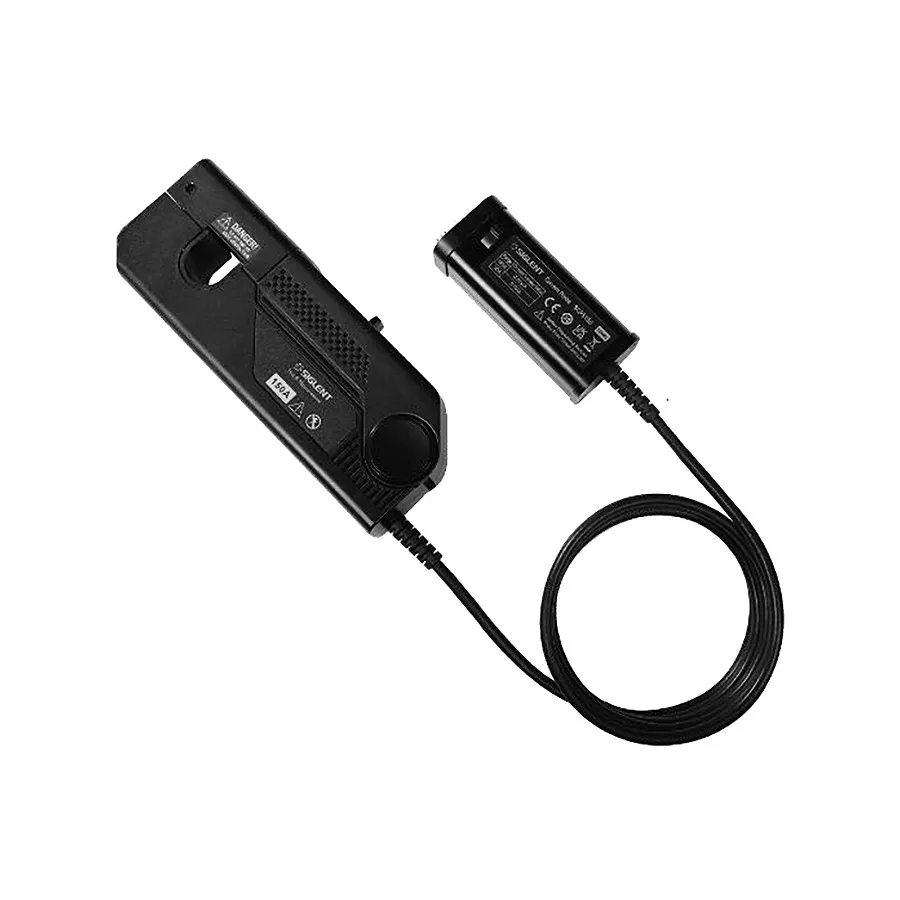

Siglent SCP5150 Current Probe
Siglent SCP5150 is a DC-12 MHz current probe with dual ranges (30A/150A), 1% accuracy, and sturdy design for high-current oscilloscope measurements.
Product details
| Model | SCP5150 |
| Manufacturer | Siglent |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Siglent SCP5150 is a DC-12 MHz active current probe engineered for measuring higher currents up to 150 Arms. It features a robust Hall Effect sensor with ferrite core and offers dual-range operation in 30A and 150A modes. The probe is powered directly from any oscilloscope with a SAPBUS input, eliminating external power supply requirements for field measurements.
As part of the SCP5000 series, the SCP5150 combines 1% DC accuracy with minimal circuit insertion loss, making it an essential tool for power electronics, inverter design, and industrial control applications where current monitoring is critical.
Key Features
- Bandwidth: DC-12 MHz with rise time ≤29ns
- Dual-range measurement: 30A (10X) / 150A (100X)
- DC accuracy: ±1% ±10mA (30A range) / ±1% ±100mA (150A range)
- Peak-peak overload rating: 300A
- Current transfer ratio: 0.1V/A (30A) / 0.01V/A (150A)
- Measurement resolution: 10mA (30A) / 100mA (150A)
- Safety rated to 300V CAT III
- Over-current protection with popup indicator
- Accommodates conductors up to 20mm diameter
- Direct SAPBUS power from oscilloscope
Applications
- Power supply and inverter design
- LED lighting development
- New energy and renewable power applications
- Frequency conversion and household appliance circuits
- Semiconductor and power electronics testing
- Industrial control and motor drive applications
Included Accessories
- SCP5150 Current Probe
- Instruction manual
Specifications
| Bandwidth | 12 MHz |
| Series | SCP5000 Series |
