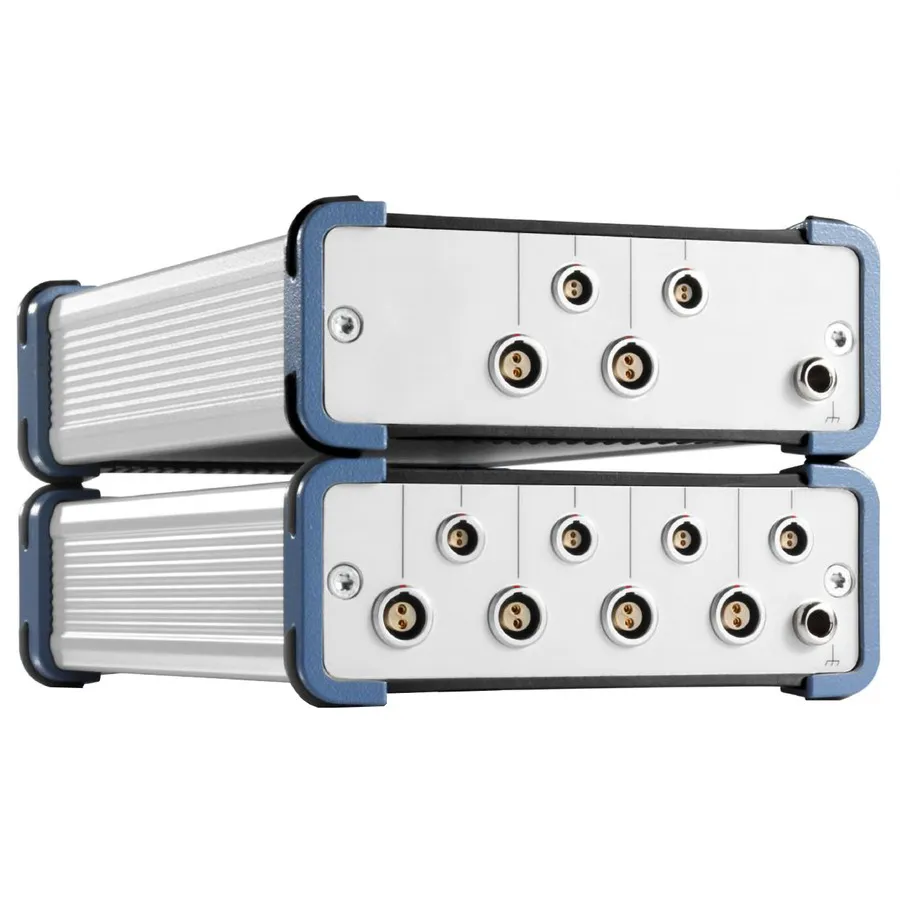

Rohde & Schwarz RT-ZVC02 Multi-Channel Power Probe
Request a quote
Rohde & Schwarz RT-ZVC02 multi-channel power probe provides up to 4 voltage and current channels with 18-bit resolution and 1 MHz bandwidth for detailed power analysis.
Product details
| Model | RT-ZVC02 |
| Manufacturer | Rohde & Schwarz |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZVC02 is a multi-channel power probe that provides up to four simultaneous voltage and current measurement channels with 18-bit resolution for detailed power analysis. When used with RTE, RTO, or RTP oscilloscopes, it enables comprehensive measurement of power signals with high dynamic range and flexible current range options.
Key Features
- Up to 4 high-sensitivity voltage and current channels
- 18-bit ADC at 5 megasamples per second per channel
- 1 MHz bandwidth with flexible filtering options
- Current ranges from 4.5 microamps to 10 amperes with internal shunt
- Compatible with RTE, RTO, and RTP oscilloscopes
- Flexible connectivity options for diverse applications
Applications
- Power consumption analysis
- Multi-channel voltage and current monitoring
- Power integrity measurements
- Energy efficiency testing
Specifications
| Series | RT-Zxx Series |
| Alternate Product Number | 1326.0259.02 |
| Type | Power Probe |
