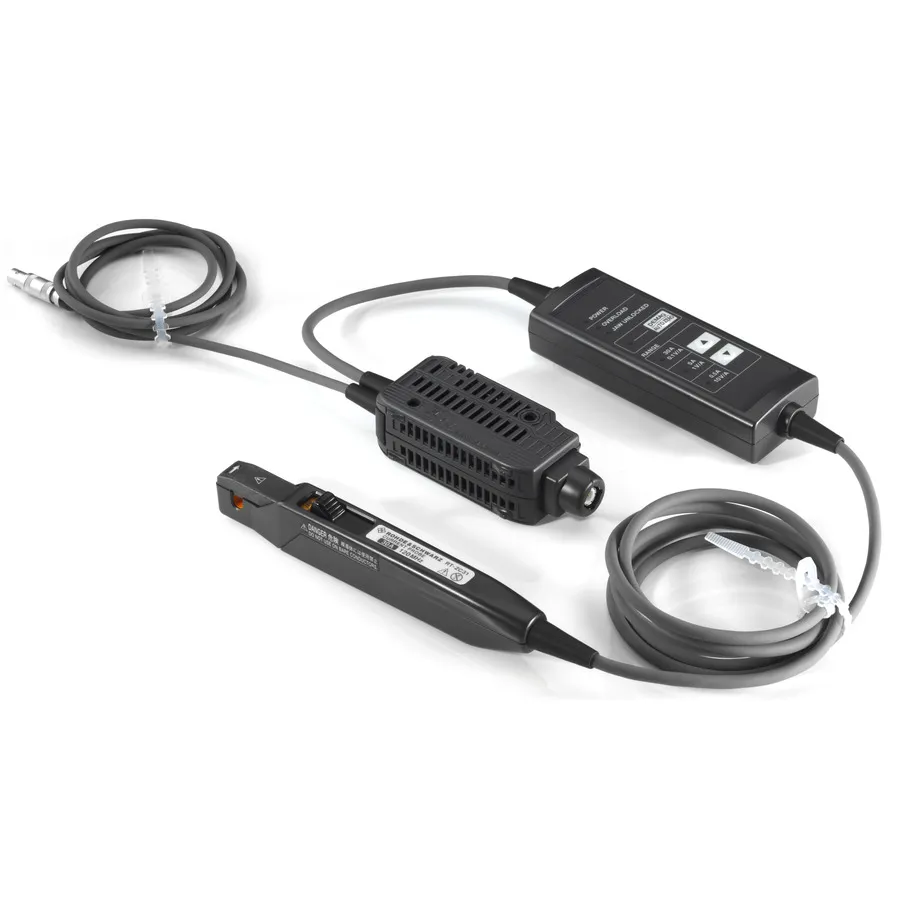

Rohde & Schwarz RT-ZC31 Current Probe
Request a quote
Rohde & Schwarz RT-ZC31 is a clamp-on current probe with three measurement ranges (0.1, 1, and 10 V/A), DC to 120 MHz bandwidth, and up to 50 A capacity.
Product details
| Model | RT-ZC31 |
| Manufacturer | Rohde & Schwarz |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZC31 is a clamp-on current probe featuring high current-detection sensitivity and broad frequency band. It combines three current measurement ranges to detect current waveforms from a few hundred milliamps to 50 A. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the electric circuit.
Key Features
- Three current ranges: 0.1 V/A, 1 V/A, and 10 V/A
- Frequency range: DC to 120 MHz
- Maximum current: 50 A
- Core jaw diameter: 5 mm
- Clamp design allows measurement without circuit interruption
- LED warnings for overload and unlocked sensor head
- Automatic zero adjustment and demagnetization functions
Included Accessories
- Carrying case
- Operating manual
Specifications
| Maximum Current | 30 A |
| Input Coupling | AC/DC |
| Bandwidth | 120 MHz |
| Cable Length | 1.5 m |
| Series | RT-Zxx Series |
| Alternate Product Number | 1801.4932.02 |
| Maximum Wire Size | 5 mm |
| Peak Current | 50 A |
| Risetime | 2.9 ns |
| Type | Current Probe |
