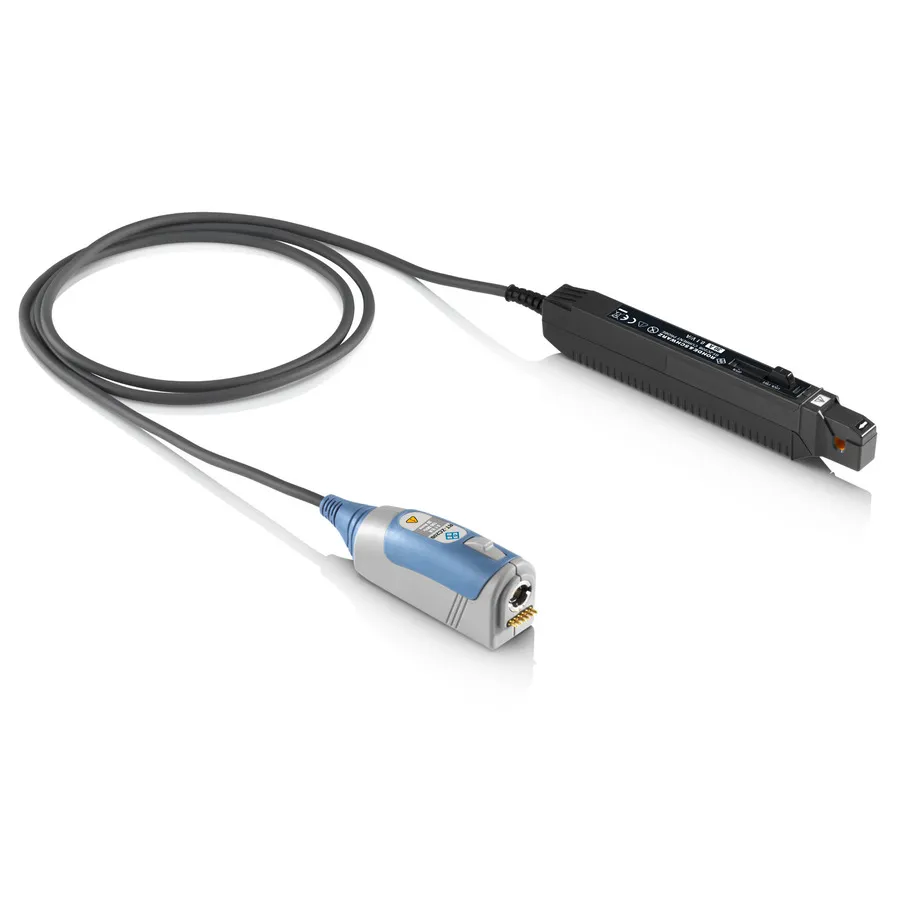

Rohde & Schwarz RT-ZC20B Current Probe
Request a quote
Rohde & Schwarz RT-ZC20B AC/DC current probe with 100 MHz bandwidth, 30 A capacity, 1.5 m integrated cable, and 5 mm aperture for direct oscilloscope connection.
Product details
| Model | RT-ZC20B |
| Manufacturer | Rohde & Schwarz |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZC20B is an AC/DC current probe optimized for 100 MHz measurements with an integrated 1.5 m cable for streamlined setup and direct connection to Rohde & Schwarz oscilloscopes. The 5 mm aperture and clamp-on design enable non-invasive current sensing in a compact form factor. Powered by the oscilloscope through the probe interface, it requires no external power supply and offers intuitive oscilloscope-controlled operation.
Key Features
- AC/DC current measurement with DC to 100 MHz bandwidth
- 30 A measurement capacity with 50 A peak range
- Integrated 1.5 m connection cable for convenient setup
- 5 mm aperture for precise current measurements
- Unique thin-film Hall effect sensor for high accuracy
- Clamp-on design allows non-invasive circuit measurements
- Powered by oscilloscope—no external power supply needed
- Remotely controlled by oscilloscope software
Applications
- High-frequency power conversion and switching analysis
- Integrated circuit characterization and validation
- Signal integrity testing in digital and RF applications
- Current waveform capture and detailed frequency domain analysis
Included Accessories
- Carrying case
- Operating manual
Specifications
| Maximum Current | 30 A |
| Input Coupling | AC/DC |
| Bandwidth | 100 MHz |
| Cable Length | 1.5 m |
| Series | RT-Zxx Series |
| Alternate Product Number | 1409.8233.02 |
| Maximum Wire Size | 5 mm |
| Peak Current | 50 A |
| Type | Current Probe |
