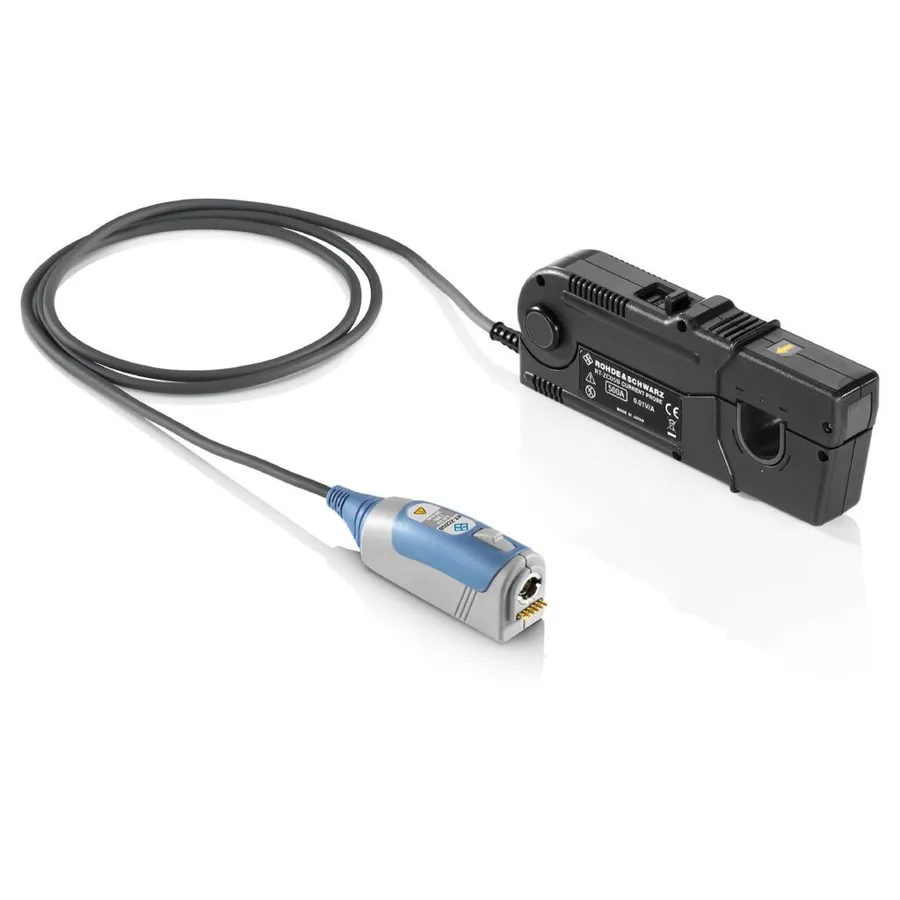

Rohde & Schwarz RT-ZC10B Current Probe
Request a quote
Rohde & Schwarz RT-ZC10B AC/DC current probe with DC to 10 MHz bandwidth, 150 A range, and Hall effect sensing for accurate non-invasive measurements.
Product details
| Model | RT-ZC10B |
| Manufacturer | Rohde & Schwarz |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZC10B is an AC/DC current probe designed for non-invasive current measurements in electronic circuits. By clamping onto a conductor, it captures current waveforms from DC to 10 MHz without interrupting the circuit. The probe interfaces directly with Rohde & Schwarz oscilloscopes, receiving power and control signals through the proprietary probe interface.
Key Features
- AC/DC current measurement with DC to 10 MHz bandwidth
- 150 A measurement range with 0.01 V/A sensitivity
- Unique thin-film Hall effect element for accurate current detection
- Large diameter design for high-current measurements
- Powered by oscilloscope—no external power supply needed
- Remote control via oscilloscope software
- Automatic protection against self-heating from excessive input
Applications
- Circuit debugging and troubleshooting
- Power supply and inverter analysis
- Signal integrity and current waveform measurements
- Component characterization in development and testing
Included Accessories
- Carrying case
- Operating manual
Specifications
| Maximum Current | 150 A |
| Input Coupling | AC/DC |
| Bandwidth | 10 MHz |
| Cable Length | 2 m |
| Series | RT-Zxx Series |
| Alternate Product Number | 1409.8210.02 |
| Maximum Wire Size | 20 mm |
| Peak Current | 300 A |
| Risetime | 35 ns |
| Type | Oscilloscope Current Probe |
