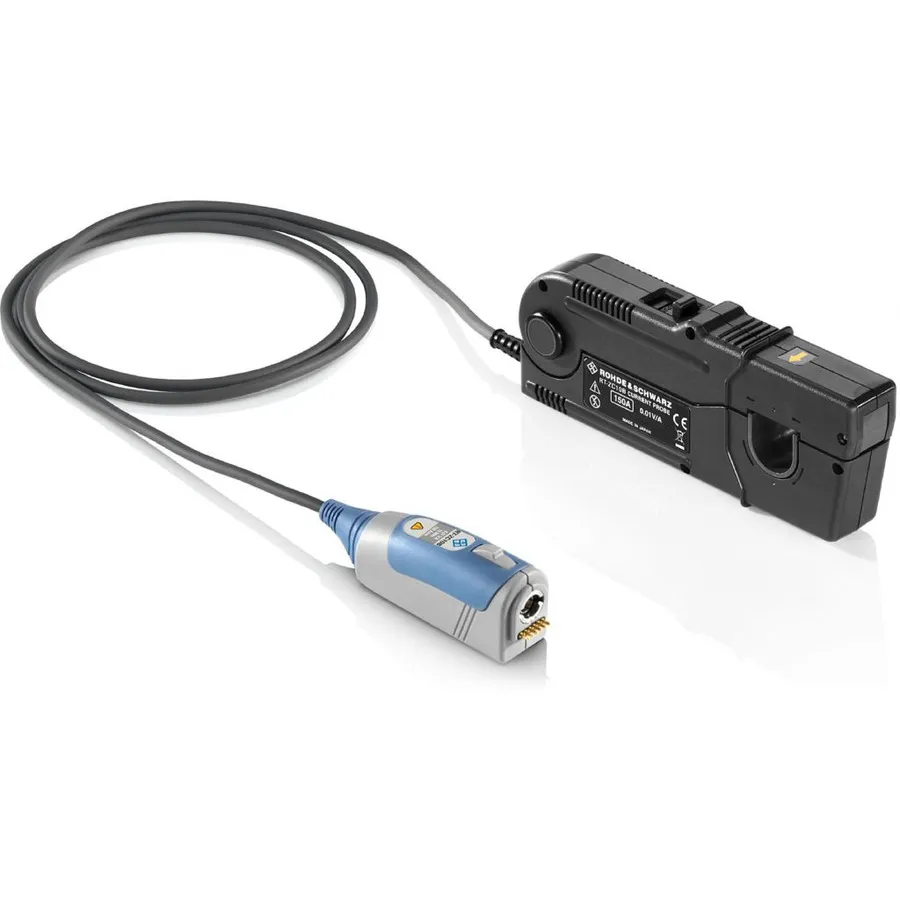

Rohde & Schwarz RT-ZC05B Oscilloscope Current Probe
Request a quote
Rohde & Schwarz RT-ZC05B is an AC/DC Hall Effect current probe with DC to 2MHz bandwidth for use with Rohde & Schwarz oscilloscopes.
Product details
| Model | RT-ZC05B |
| Manufacturer | Rohde & Schwarz |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZC05B is an AC/DC current probe offering broadband frequency characteristics from DC to 2MHz. Featuring a unique thin film Hall Effect element, it provides highly accurate current detection without interrupting the circuit. The probe connects directly to Rohde & Schwarz oscilloscopes via the proprietary probe interface, which supplies power and enables remote control via the oscilloscope software.
Key Features
- Frequency range: DC to 2MHz
- Large diameter jaw allows high-current measurements
- Thin film Hall Effect element for accuracy
- Powered by oscilloscope via Rohde & Schwarz probe interface
- Remotely controlled by oscilloscope software
- Automatic protection against self-heating during excessive input
Applications
- High-frequency current waveform analysis
- Oscilloscope-based current measurement
- Power supply testing
Included Accessories
- Carrying Case
- Operating Manual
Specifications
| Maximum Current | 500 A |
| Input Coupling | AC/DC |
| Bandwidth | 2 MHz |
| Cable Length | 2 m |
| Series | RT-Zxx Series |
| Alternate Product Number | 1409.8204.02 |
| Maximum Wire Size | 20 mm |
| Peak Current | 700 A |
| Risetime | 175 ns |
| Type | Oscilloscope Current Probe |
