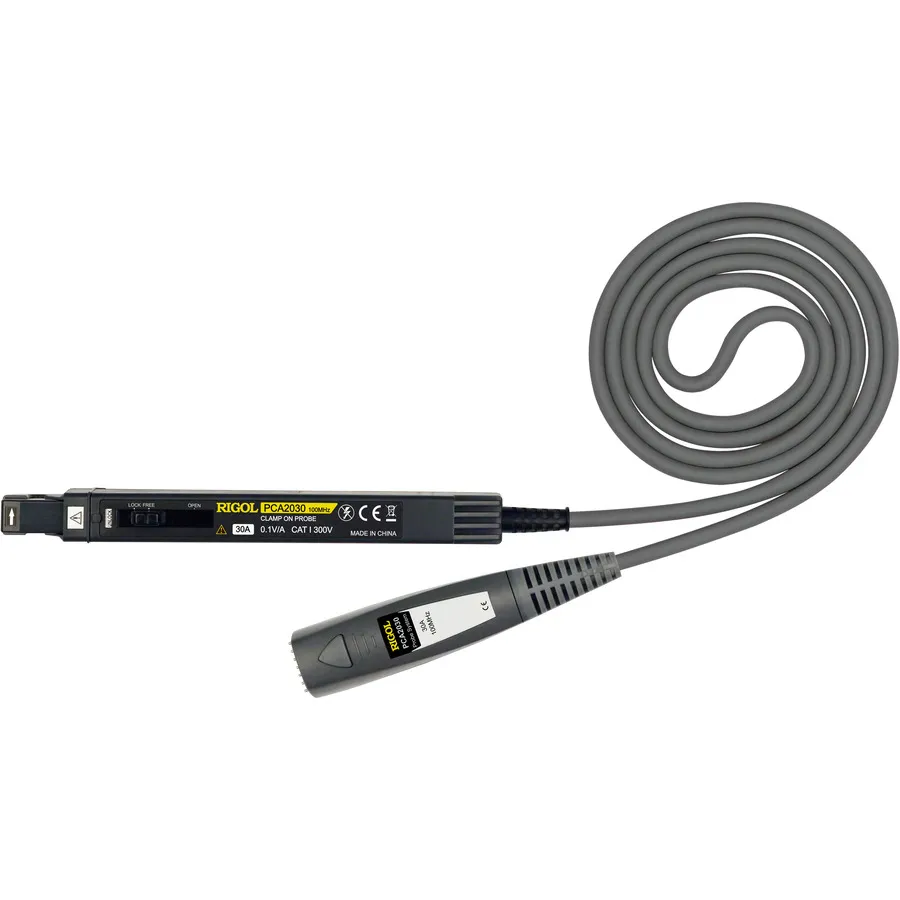

RIGOL PCA2030 Current Probe
Request a quote
RIGOL PCA2030 current probe with 100 MHz bandwidth and 30 A measurement range, featuring compact design for low-current analysis on RIGOL 7000 & 8000 Series oscilloscopes.
Product details
| Model | PCA2030 |
| Manufacturer | RIGOL |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The RIGOL PCA2030 is a 100 MHz current probe designed for RIGOL 7000 and 8000 Series oscilloscopes. With a compact 5 mm clamp opening, it enables low-current measurement up to 30 A using a thin film Hall effect sensor, making it ideal for precise current waveform analysis in high-frequency applications.
Key Features
- 100 MHz bandwidth for high-frequency current measurements
- 30 A measurement range with high accuracy
- Compact 5 mm clamp design for low-current applications
- Thin film Hall effect element for non-invasive sensing
- Direct BNC connection to oscilloscope inputs
- Protection against excessive input current
Applications
- Low-current circuit and PCB trace analysis
- High-frequency switching power supply testing
- Signal integrity and transient current measurement
- Educational demonstrations and laboratory testing
Included Accessories
- User Guide
- Probe Case
Specifications
| Maximum Current | 30 A |
| Input Coupling | AC/DC |
| Bandwidth | 100 MHz |
| Cable Length | 1.5 m |
| Series | PCA Series |
| Maximum Wire Size | 5 mm |
| Peak Current | 50 A |
| Probe Length | 1.5 m |
| Series Compatibility | 7000 Series, 8000 Series |
