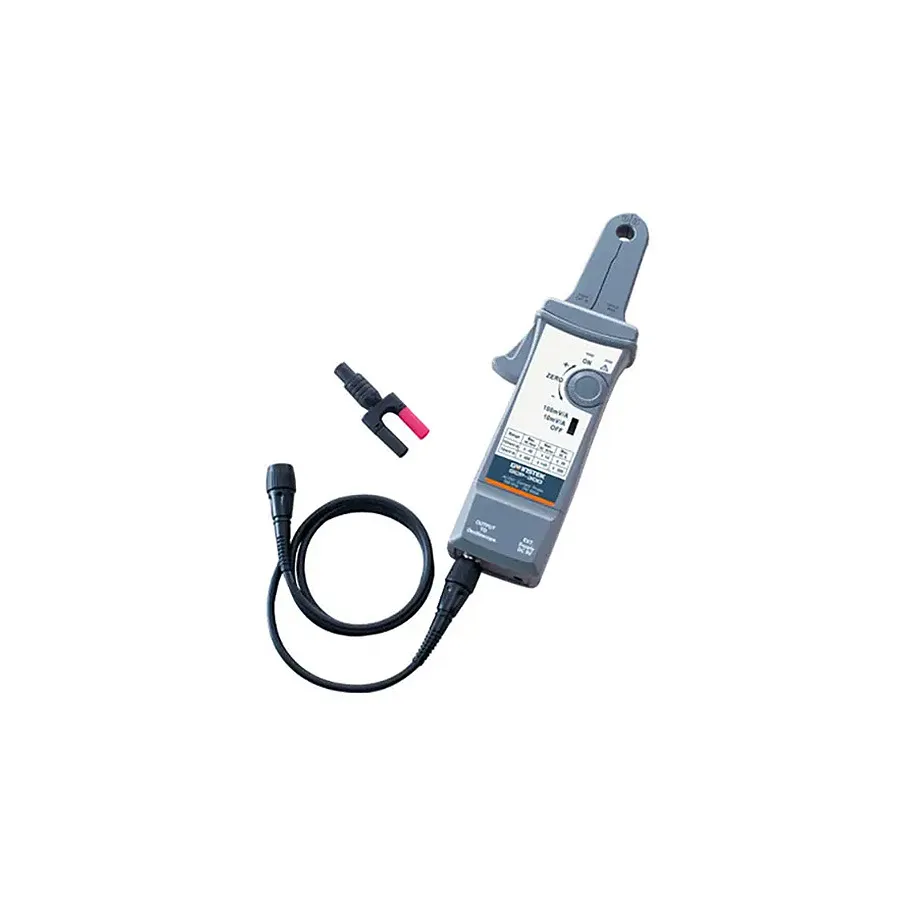

GW Instek GCP-300 Current Probe
Request a quote
GW Instek GCP-300 is an AC/DC current probe with 300 kHz bandwidth for oscilloscope and multimeter measurements up to 200A peak.
Product details
| Model | GCP-300 |
| Manufacturer | GW Instek |
| Category | Current Probes |
| Availability | Made to order |
Description
Overview
The GW Instek GCP-300 is an AC/DC current probe that allows a general-purpose oscilloscope to display AC and DC current signals up to 200 amps peak (140A RMS). It can also be used with multimeters for AC and DC measurements via a BNC-to-banana plug adapter.
Key Features
- Bandwidth: DC to 300 kHz
- Max. Measurement Range: 200A peak (10mV/A) or 20A peak (100mV/A)
- Overload Indicator for protection
- Designed for AC and DC current measurement
- Compatible with oscilloscopes and multimeters
Applications
- Current measurement with oscilloscopes
- AC and DC current analysis with multimeters
- Industrial and electronics testing
Included Accessories
- Instruction Manual (English version)
- BNC-to-BNC Coaxial Cable, 1m length
- AC Power Converter (regional voltage)
- BNC-to-Banana Plug Adapter with color-coded design
Specifications
| Maximum Current | 140 A |
| Input Coupling | AC/DC |
| Bandwidth | 300 kHz |
| Maximum Input Voltage | 600 V |
| Safety Rating | CAT2 | CAT3 |
| Cable Length | 1 m |
| Series | GCP Series |
| Maximum Wire Size | 11 mm |
| Peak Current | 200 A |
