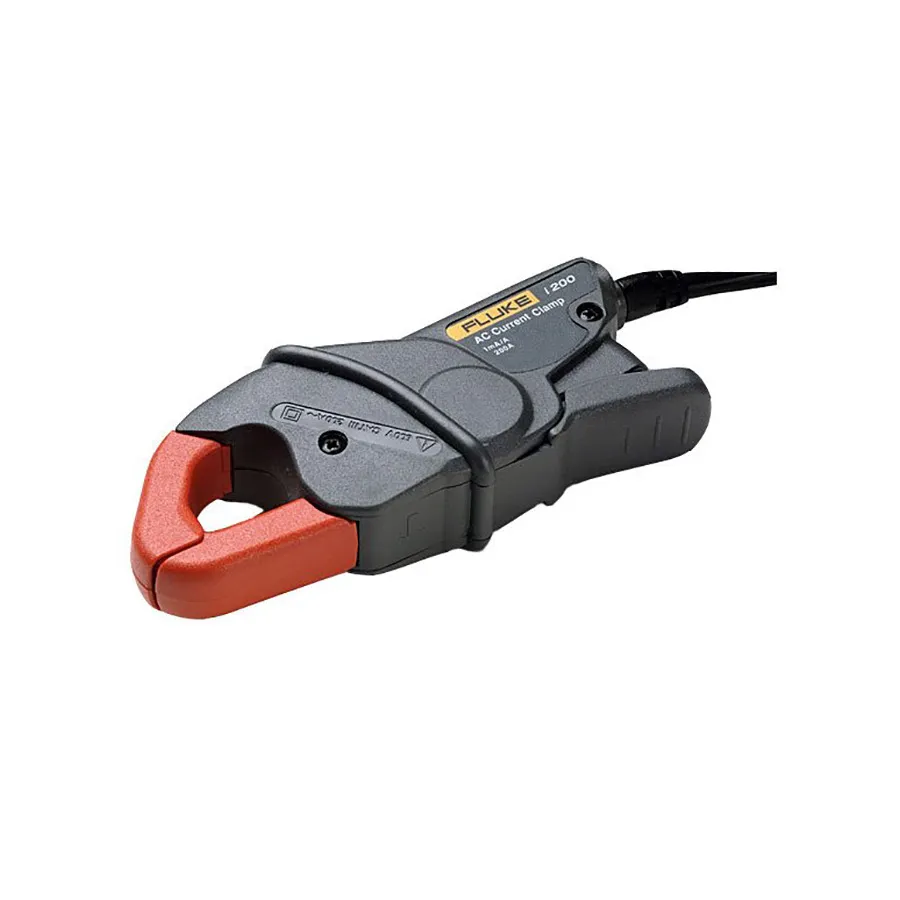

Fluke i200 AC Current Clamp, 200A
Request a quote
Fluke i200 is a compact single-range AC current clamp measuring up to 240A with 1 mA/A output and safety shrouded banana plugs.
Product details
| Model | I200 |
| Manufacturer | Fluke |
| Category | Current Clamp Accessories |
| Availability | Made to order |
Description
Overview
The Fluke i200 is a single-range AC current clamp designed for measuring AC current up to 240 amperes. It outputs a signal compatible with Fluke digital multimeters and other measuring devices equipped with shrouded banana plug inputs. The clamp features a compact jaw opening suited for various conductor sizes.
Key Features
- Measuring range: 0.5 to 240 Amps AC
- Output signal: 1 mA/A
- Safety shrouded banana plugs for secure connections
- Jaw opening: 21 mm (fits conductors up to 20 mm diameter or busbar 20 x 5 mm)
- Frequency response: 40 Hz to 10 kHz
- Safety rating: EN61010, CAT III 600V
- One-year warranty included
Applications
- AC current measurement with compatible Fluke multimeters
- Electrical troubleshooting and diagnostics
- Industrial power measurement
Specifications
| Series | i-Series |
| Alternate Product Number | 664755 |
| Clamp Type | AC Clamp |
