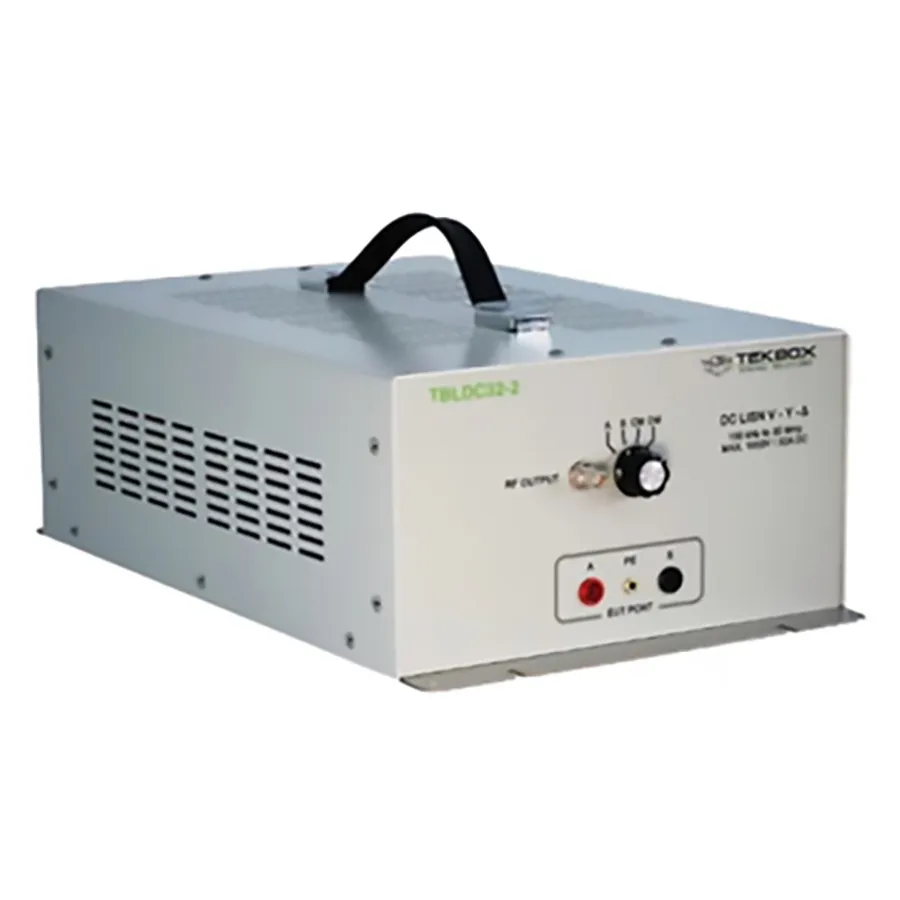

TekBox TBLDC32-2 DC Line Impedance Stabilization Network
TekBox TBLDC32-2 is a Line Impedance Stabilization Network for measuring conducted emissions on DC lines at 9 kHz–30 MHz with 32 A capacity per CISPR 16-1-2.
Product details
| Model | TBLDC32-2 |
| Manufacturer | TekBox |
| Category | Coupling Networks & LISN |
| Availability | Made to order |
Description
Overview
The TekBox TBLDC32-2 is a Line Impedance Stabilization Network (LISN) specifically designed for measuring conducted emissions on DC power lines in the 9 kHz to 30 MHz frequency range, in accordance with CISPR 16-1-2 and CISPR 11 standards. It is designed for testing disturbance voltages at DC power ports of semiconductor power converters and similar equipment with DC supply voltages up to 1000 V and continuous current capacity of 32 A (25 A continuous, 32 A for 15 minutes). The device features a rotary switch for measurement of forward/return supply lines and separate common mode and differential mode measurements.
Key Features
- Frequency range: 9 kHz to 30 MHz
- DC voltage rating: 1000 V maximum
- Maximum continuous current: 25 A (32 A for 15 minutes)
- Mode A/B impedance: 150 ± 30 Ω
- Common mode impedance: 150 ± 30 Ω
- Differential mode impedance: 150 ± 30 Ω
- Phase at EUT port: 0 ± 40°
- EUT-to-AE port isolation: >20 dB (common mode), >40 dB (differential mode)
- Longitudinal conversion loss: >26 dB
- Voltage division factor: 20 ± 3 dB
- Air core inductors for accurate impedance
- Rotary selection switch for paths A, B, CM, and DM measurement
- 4 mm safety banana connectors for EUT and AE ports
- BNC measurement connector (50 Ω)
- Robust stainless steel base with ground flanges
Applications
- DC power line conducted emissions testing per CISPR 16-1-2 and CISPR 11
- Semiconductor power converter disturbance voltage measurement
- DC power distribution system EMC compliance
- Common mode and differential mode emissions analysis
Specifications
| Series | TBL Series |
Request a quote
