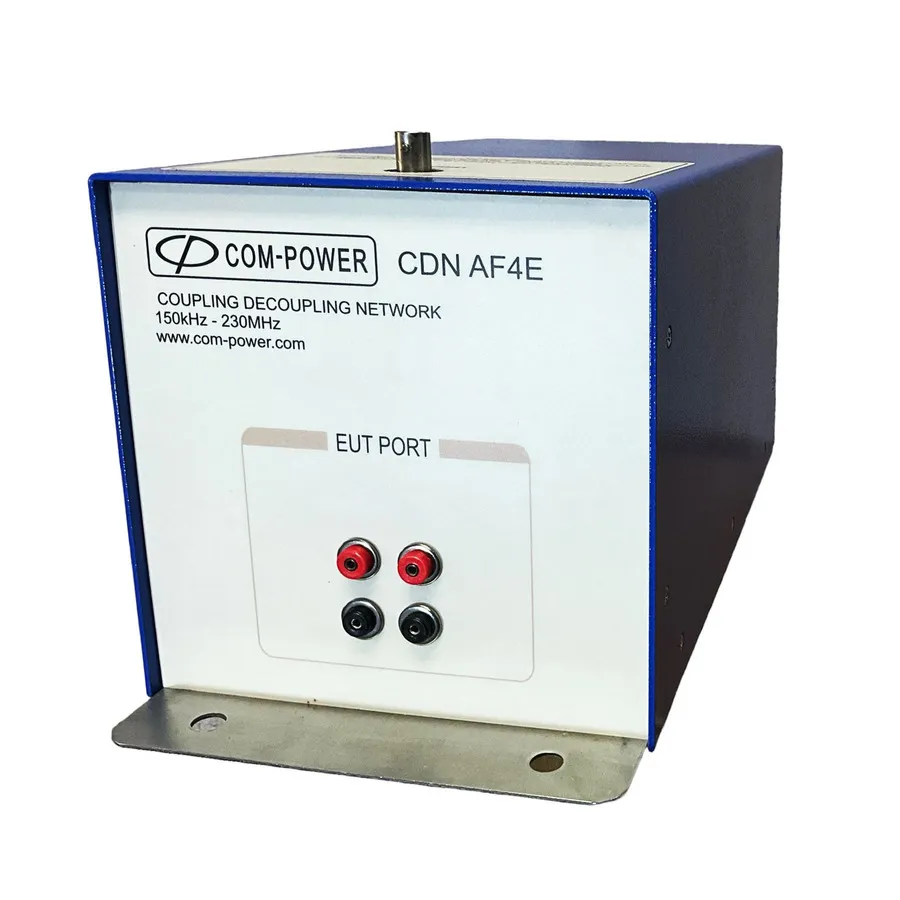

Com-Power CDN-AF4E Coupling Decoupling Network
Request a quote
Com-Power CDN-AF4E is a four-wire unscreened coupling decoupling network for IEC 61000-4-6 conducted immunity testing, covering 150 kHz to 230 MHz.
Product details
| Model | CDN-AF4E |
| Manufacturer | Com-Power |
| Category | Coupling Networks & LISN |
| Availability | Made to order |
Description
Overview
The Com-Power CDN-AF4E is a four-wire unscreened coupling decoupling network designed for conducted immunity testing according to IEC 61000-4-6 standards. It enables testing of products that use four-wire unscreened, unbalanced cables, making it suitable for EMC (electromagnetic compatibility) laboratories and in-house test facilities.
Key Features
- Four-wire unscreened, unbalanced cable configuration
- Frequency range: 150 kHz to 230 MHz
- Maximum RF input voltage: 40V
- Maximum current handling: 5 Amps
- Four 2 mm shrouded banana sockets for EUT and AE power connection
- Female BNC connector for RF disturbance signal coupling
- Fully compliant with IEC 61000-4-6 and CISPR 16-1-2
- Individual calibration included
- Three-year warranty
Applications
- Conducted immunity testing for data communication equipment
- EMC pre-compliance and compliance testing
- Equipment with four-wire unscreened cable interfaces
Specifications
