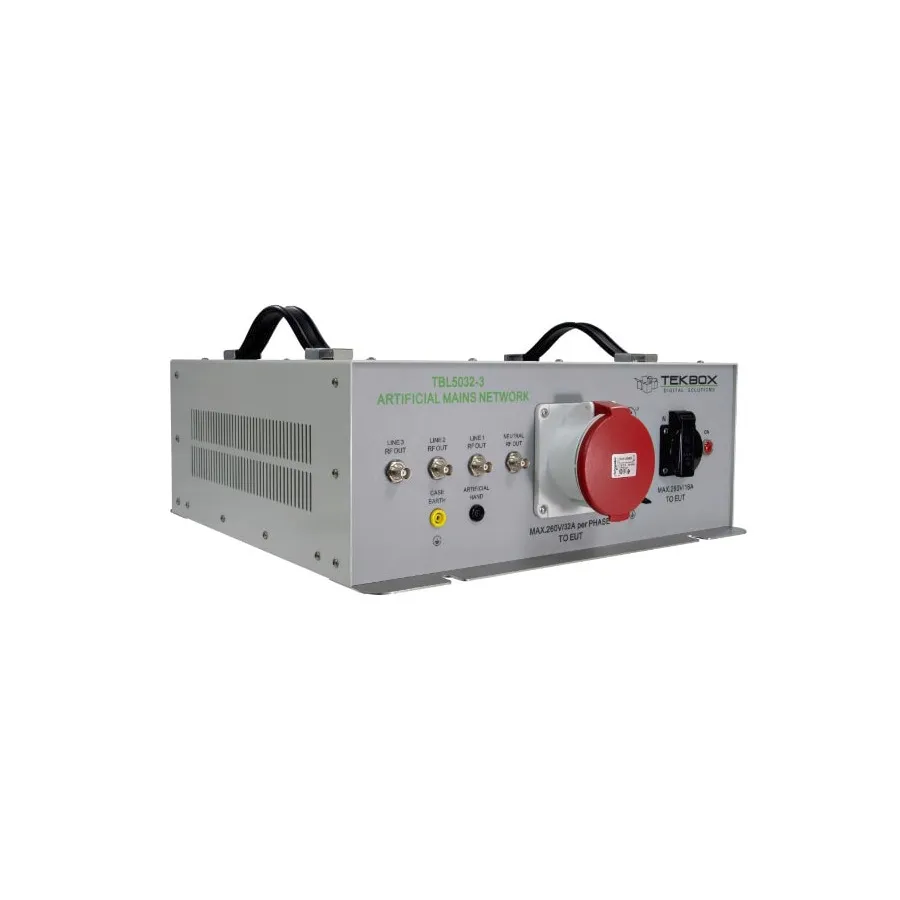

TekBox TBL5032-3-US Line Impedance Stabilization Network
TekBox TBL5032-3-US is a three-phase Line Impedance Stabilization Network for measuring conducted emissions at 9 kHz–30 MHz with 32 A capacity per CISPR 16-1-2 standard.
Product details
| Model | TBL5032-3-US |
| Manufacturer | TekBox |
| Category | Coupling Networks & LISN |
| Availability | Made to order |
Description
Overview
The TekBox TBL5032-3 is a three-phase Line Impedance Stabilization Network (LISN) designed to measure line-conducted interference in the 9 kHz to 30 MHz frequency range, in accordance with CISPR 16-1-2 standard. It is designed for testing three-phase and single-phase AC-powered equipment with supply voltages up to 450 V / 260 V and current capacity of 32 A per phase and neutral. The device provides separate RF outputs for each phase and neutral conductor, enabling accurate measurement of conducted emissions. This US version includes an external 9 kHz coaxial high-pass filter instead of an integrated filter.
Key Features
- Frequency range: 9 kHz to 30 MHz
- Three-phase and single-phase support with 3L+N+PE configuration
- Impedance: 50 Ω / (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE (protective earth): 50 Ω / 50 µH
- Integrated 250 µH pre-filter
- Separate RF outputs for each phase and neutral
- Air core inductors for accurate impedance measurement
- Maximum current: 32 A per phase and neutral at 23°C
- CEE/IEC 60309 three-phase DUT socket, 32 A rated
- External 9 kHz coaxial high-pass filter included
- Compatible with TBLM1 for common/differential mode separation
Applications
- Three-phase and single-phase conducted emissions testing per CISPR 16-1-2
- High-current industrial equipment testing
- Common mode and differential mode analysis
- Power distribution system EMC compliance verification
Included Accessories
- External 9 kHz coaxial high-pass filter
- US version with country-specific DUT connector
Specifications
