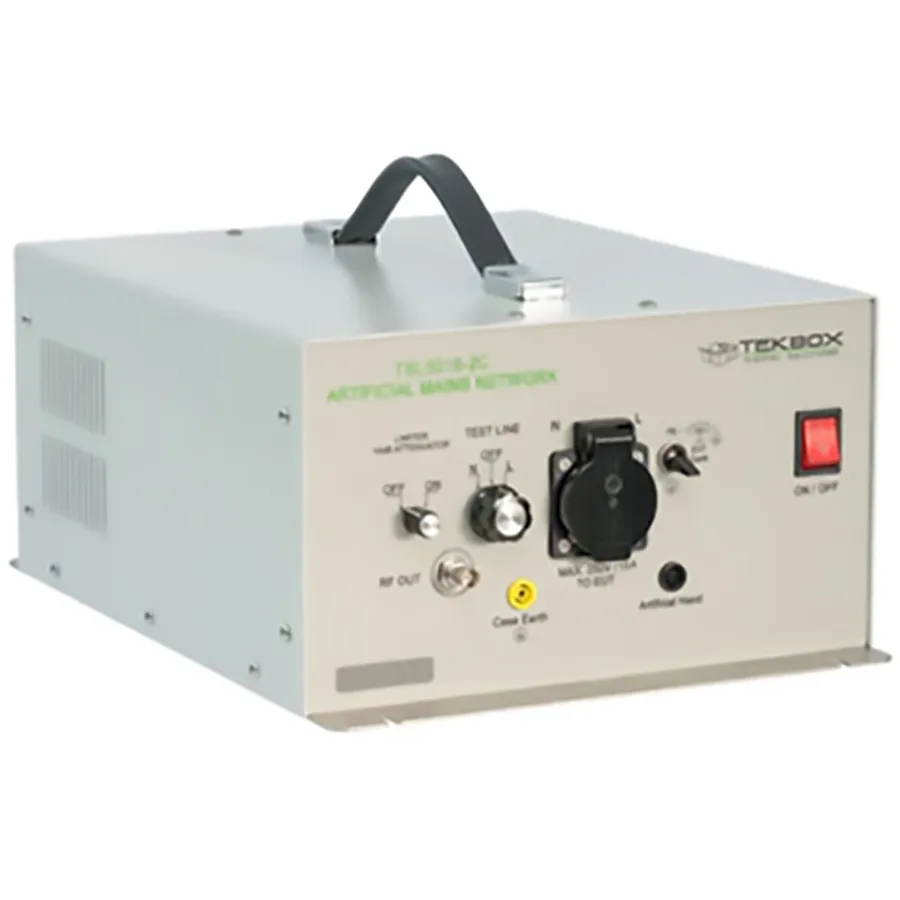

TekBox TBL5016-2C Line Impedance Stabilization Network
Request a quote
TekBox TBL5016-2C is a single-phase Line Impedance Stabilization Network for measuring conducted emissions at 9 kHz–30 MHz with 16 A capacity per CISPR 16-1-2 standard.
Product details
| Model | TBL5016-2C |
| Manufacturer | TekBox |
| Category | Coupling Networks & LISN |
| Availability | Made to order |
Description
Overview
The TekBox TBL5016-2C is a Line Impedance Stabilization Network (LISN) designed to measure conducted emissions on power supply lines in the 9 kHz to 30 MHz frequency range, in accordance with CISPR 16-1-2 standard. It is designed for testing single-phase AC-powered equipment with supply voltages up to 250 V and current capacity of 16 A. The device allows measurement of conducted noise on both the phase and neutral conductors.
Key Features
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω ║ (50 µH + 5 Ω)
- Line selector switch for phase and neutral measurement
- Switchable PE (protective earth): 50 Ω ║ 50 µH
- Integrated limiter/attenuator/high-pass filter: +6 dBm / 10 dB / 150 kHz to 30 MHz
- Air core inductors for accurate impedance
- Maximum continuous current: 16 A at 23°C
- Artificial hand connection: 220 pF + 511 Ω
- BNC measurement connector (50 Ω)
- Country-specific EUT connectors available
Applications
- Conducted emissions testing per CISPR 16-1-2 and CISPR 11 standards
- EMC pre-compliance testing
- Single-phase AC power distribution equipment testing
- Power supply interference measurement
Specifications
| Series | TBL Series |
