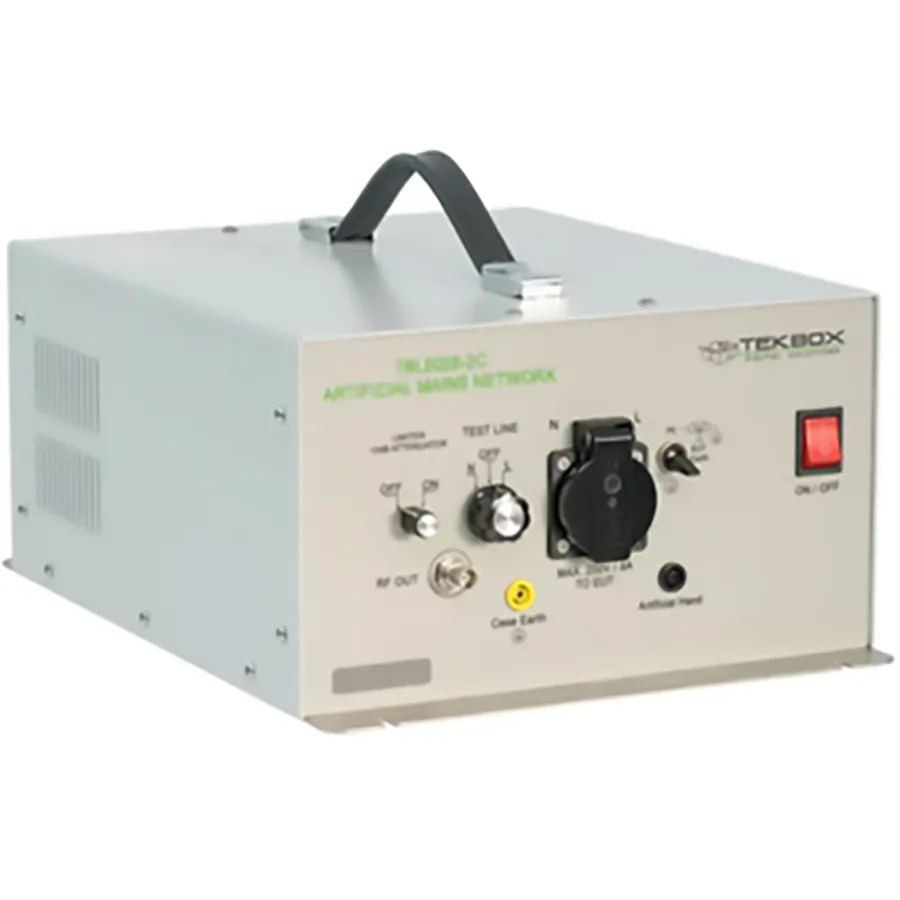

TekBox TBL5008-2C Line Impedance Stabilisation Network
Request a quote
TekBox TBL5008-2C is a Line Impedance Stabilisation Network for measuring conducted emissions on AC power lines up to 8A, 9 kHz to 30 MHz.
Product details
| Model | TBL5008-2C |
| Manufacturer | TekBox |
| Category | Coupling Networks & LISN |
| Availability | Made to order |
Description
Overview
The TekBox TBL5008-2C is a single-channel Line Impedance Stabilization Network (LISN) designed for conducted emissions measurements on AC-powered equipment. Operating in the 9 kHz to 30 MHz frequency range, it complies with CISPR 16-1-2 standards. The device is suitable for testing equipment with supply voltages up to 250V and maximum currents of 8A, making it ideal for single-phase AC applications in EMC laboratories.
Key Features
- 50 Ω || (50 µH + 5 Ω) impedance configuration
- Frequency range: 9 kHz to 30 MHz
- Maximum current rating: 8A @ 23°C
- Line voltage: up to 250V AC (50/60 Hz) or DC
- Switchable artificial hand circuit (220 pF + 511 Ω)
- Switchable protective earth (PE) configuration
- Integrated limiter/attenuator/highpass filter (+6 dBm / 10 dB / 150 kHz–30 MHz)
- Air core inductors for low losses
- Measurement connector: 50 Ω BNC
- Power connector: IEC 60320 C13
- Operating temperature range: +5°C to +40°C, 5–80% RH
Applications
- Conducted emissions testing per CISPR 16-1-2
- EMC pre-compliance testing for consumer and industrial equipment
- Single-phase AC equipment testing up to 8A
Specifications
| Series | TBL Series |
