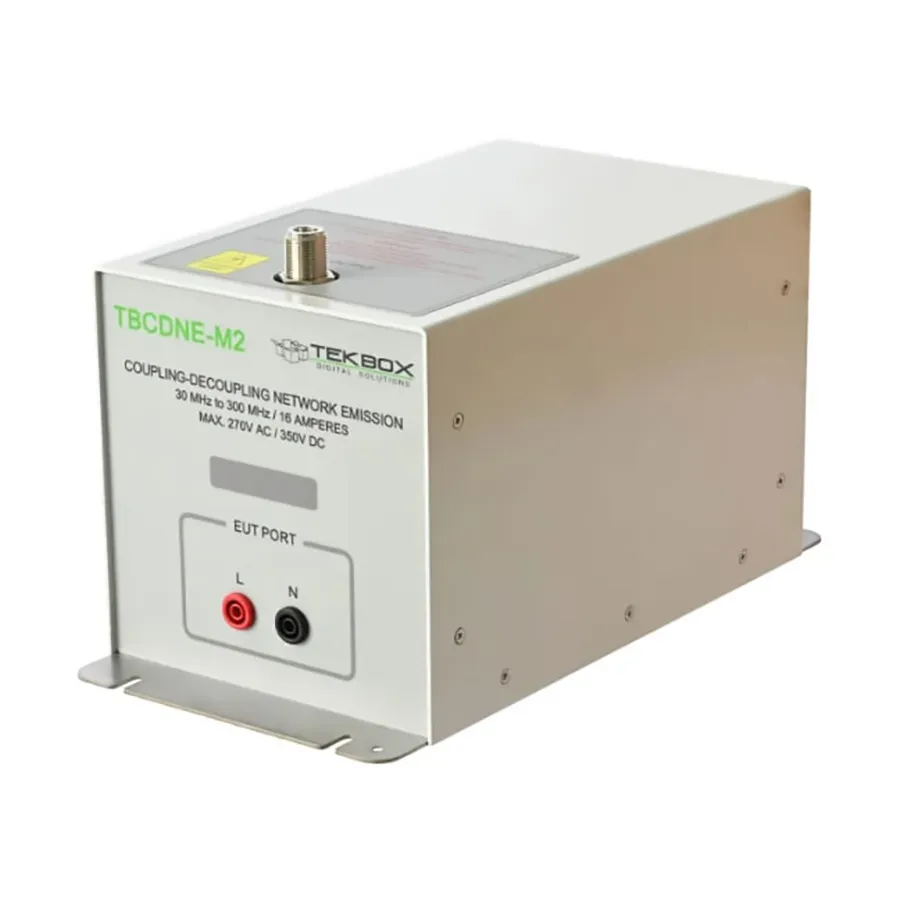

TekBox TBCDNE-M2 is a coupling decoupling network for measuring radiated emission of lighting equipment, CISPR 15 compliant, 30 MHz–300 MHz, 16A maximum.
Product details
| Model | TBCDNE-M2 |
| Manufacturer | TekBox |
| Category | Coupling Networks & LISN |
| Availability | Made to order |
Description
Overview
The TekBox TBCDNE-M2 is a coupling decoupling network emission (CDNE) used for measuring radiated emission of lighting equipment according to CISPR 15 (EN55015) Edition 9 standards. It provides an alternative to traditional open area test site (OATS) measurements and operates across 30 MHz to 300 MHz. The TBCDNE-M2 is designed for EUTs (Equipment Under Test) that do not have a protective earth (PE) connection.
Key Features
- Frequency range: 30 MHz to 300 MHz
- Maximum supply voltage: 300V AC, 600V DC
- Maximum current: 16A
- Common mode impedance: 150 Ω +10/–20 Ω (EUT port)
- Differential mode impedance: 100 Ω ± 20 Ω (EUT port)
- CISPR 15 (IEC/EN 55015) Edition 9 compliant
- CISPR 16-1-2 and CISPR 16-2-1 compliant
- Minimum 20 dB longitudinal conversion loss to prevent symmetrical voltage influence
- EUT/AE connectors: 4mm banana safety jacks with 4mm GND slots in base plate
- NIST traceable calibration data included
Applications
- Radiated emission testing of lighting equipment
- Alternative to open area test site (OATS) measurements
- Testing for EUTs without protective earth (PE) connections
Specifications
| Type | M2 |
| Series | TBCDNE Series |
| Frequency Range | 30 - 300 MHz |
