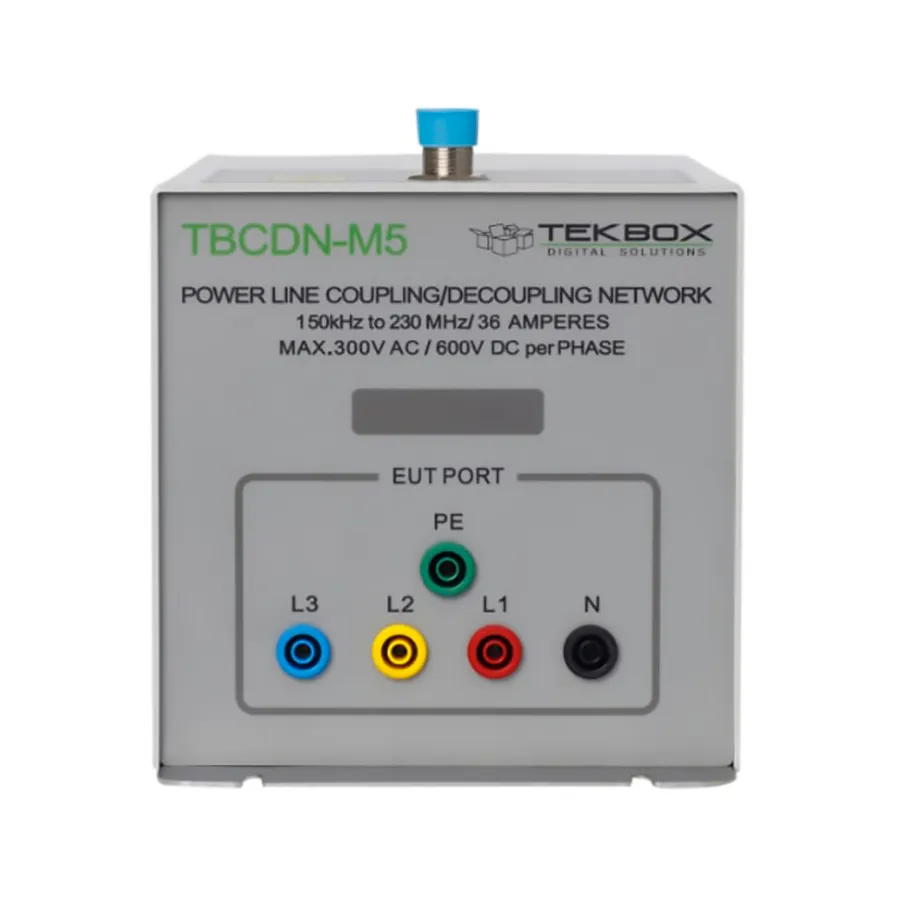

TekBox TBCDN-M5 Coupling Decoupling Network

Overview

The TekBox TBCDN-M5 is a coupling decoupling network designed for conducted immunity testing according to IEC 61000-4-6 Annex D2. It injects common mode disturbance signals into unscreened AC and DC power supply lines across the frequency range from 150 kHz to 230 MHz.

Key Features

• Maximum supply voltage: 300V AC, 600V DC
• Maximum current: 36A
• Frequency range: 150 kHz to 230 MHz
• Maximum RF input power: 6.5W CW with RF input voltage of 32V
• RF input connector: N-Female
• Common mode impedance: 150 Ω ± 20 Ω (150 kHz–24 MHz), 150 Ω +60/–45 Ω (24 MHz–80 MHz), 150 Ω ± 60 Ω (80 MHz–230 MHz)
• Voltage Division Ratio: 9.5 dB ± 1 dB (150 kHz–80 MHz), 9.5 dB +3/–2 dB (80 MHz–230 MHz)
• EUT/AE connectors: 4mm banana safety jacks with 4mm GND slots in base plate
• Housing: powder coated aluminum with stainless steel base plate
• Includes individual test protocol with voltage division ratio measurement
