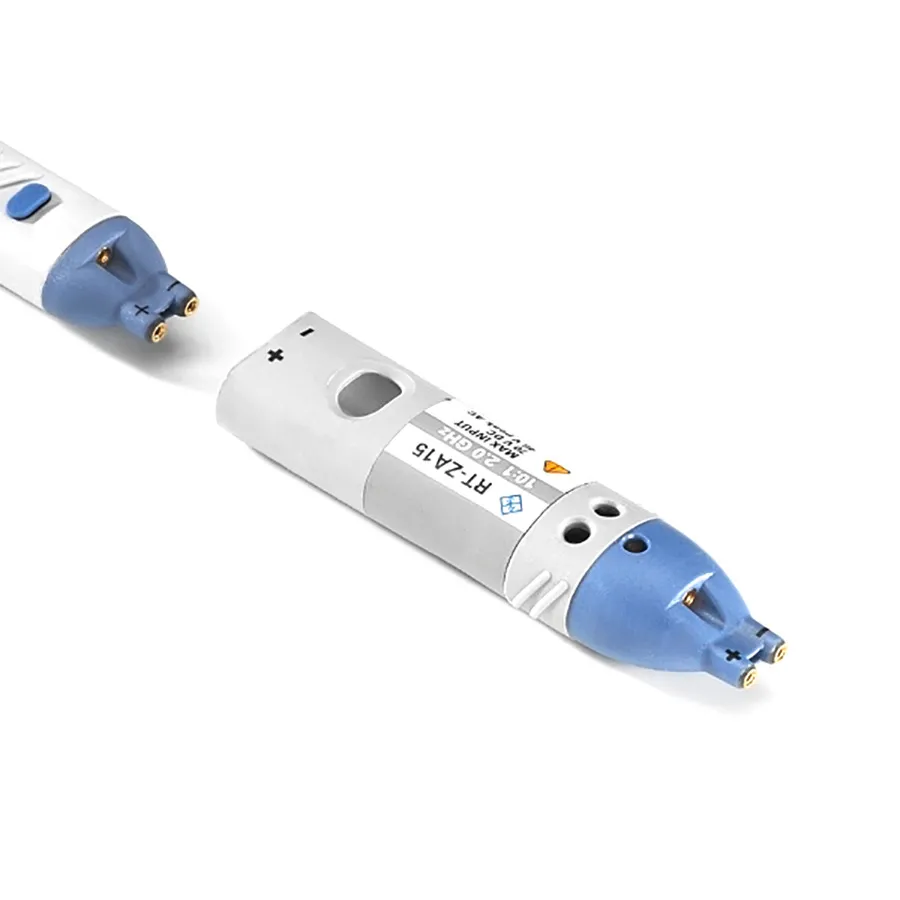

Rohde & Schwarz RT-ZA15 External Attenuator
Request a quote
RT-ZA15 is a 10:1 external attenuator extending input voltage range of RT-ZD series differential probes, with 100:1 total attenuation.
Product details
| Model | RT-ZA15 |
| Manufacturer | Rohde & Schwarz |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZA15 is an external 10:1 attenuator designed to extend the input voltage range of the RT-ZD10/20/30 differential probe. By combining with the appropriate differential probe, it provides increased dynamic range and expanded operating voltage window for precise measurements.
Key Features
- 10:1 attenuation ratio, 100:1 when combined with differential probe
- Bandwidth: DC to 2.0 GHz (with RT-ZD30), or lower with RT-ZD10 (1.0 GHz) and RT-ZD20 (1.5 GHz)
- Dynamic range: +/-50 V differential input with +/-50 V offset capability
- Differential input resistance: 1 MOhm
- Differential input capacitance: 1.3 pF
Applications
- Extended voltage range measurements with differential probes
- High-bandwidth signal acquisition and analysis
Specifications
| Series | RT-Zxx Series |
| Alternate Product Number | 1410.4744.02 |
| Type | External Attenuator |
