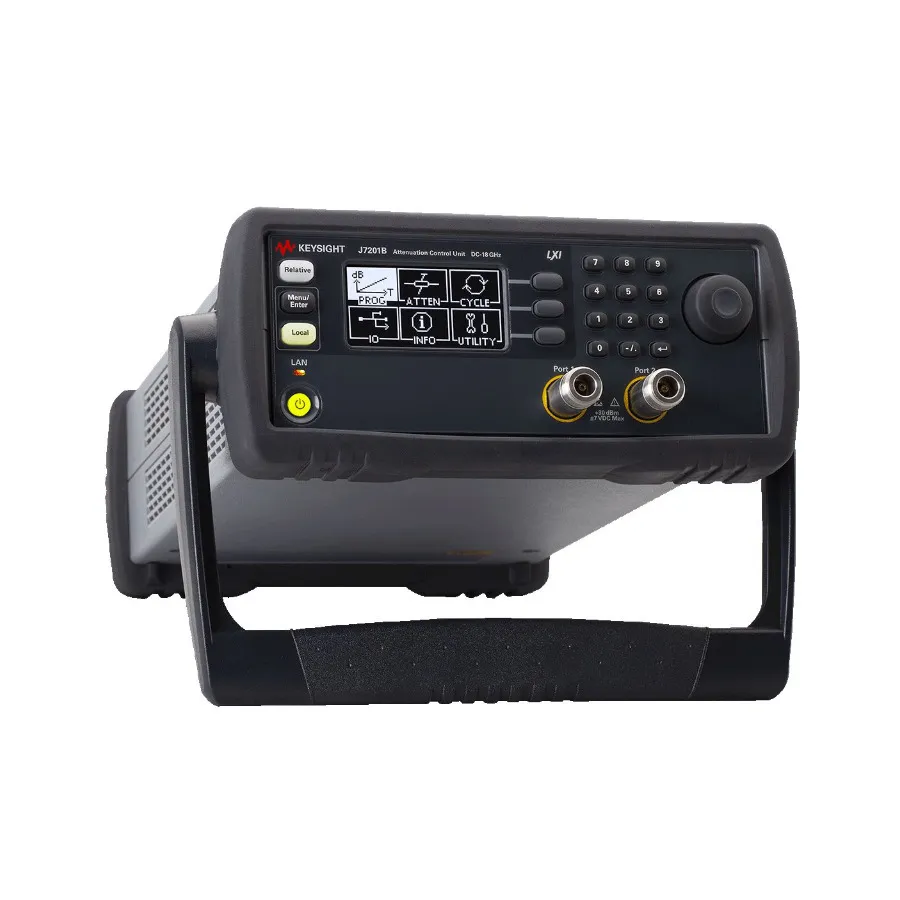

Keysight J7201B/002 Attenuation Control Unit
Request a quote
Keysight J7201B/002 is a DC-18 GHz attenuation control unit with SMA connector, offering 0-121 dB range and 1 dB step resolution with advanced sweep functionality.
Product details
| Model | J7201B/002 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight J7201B/002 is an attenuation control unit with SMA connector, designed for R&D and production engineers in wireless communications, aerospace, defense, and electronic components industries. Operating from DC to 18 GHz, it provides precise attenuation control with exceptional stability and repeatability over millions of cycles, making it suitable for both laboratory and production test environments.
Key Features
- Advanced attenuation sweep function with customizable dwell time and cycle count
- Relative attenuation step function for flexible control schemes
- 1 dB step resolution with 0 to 121 dB range
- Exceptional < 0.03 dB insertion loss repeatability per section over 5 million cycles
- SMA (female) connector
- Compact half-rack, 2U form factor
- GPIB, USB, and LAN connectivity (LXI Class C compliant)
Applications
- WiMAX and WLAN component design and validation
- Mobile handset base transceiver station (BTS) testing
- Wireless communication system testing
- Aerospace and defense RF applications
Specifications
| Frequency Range | DC to 18 GHz |
| Attenuation Range | 0 to 121 dB |
| Step Size | 1 dB |
| Sweep Time (Selectable) | 50 ms to 10 s, 50 ms increments |
| Insertion Loss Repeatability | < 0.03 dB per section (5 million cycles) |
| Connector Type | SMA (female) |
| Form Factor | Compact half-rack, 2U high |
| Connectivity | GPIB, USB, LAN (LXI Class C) |
