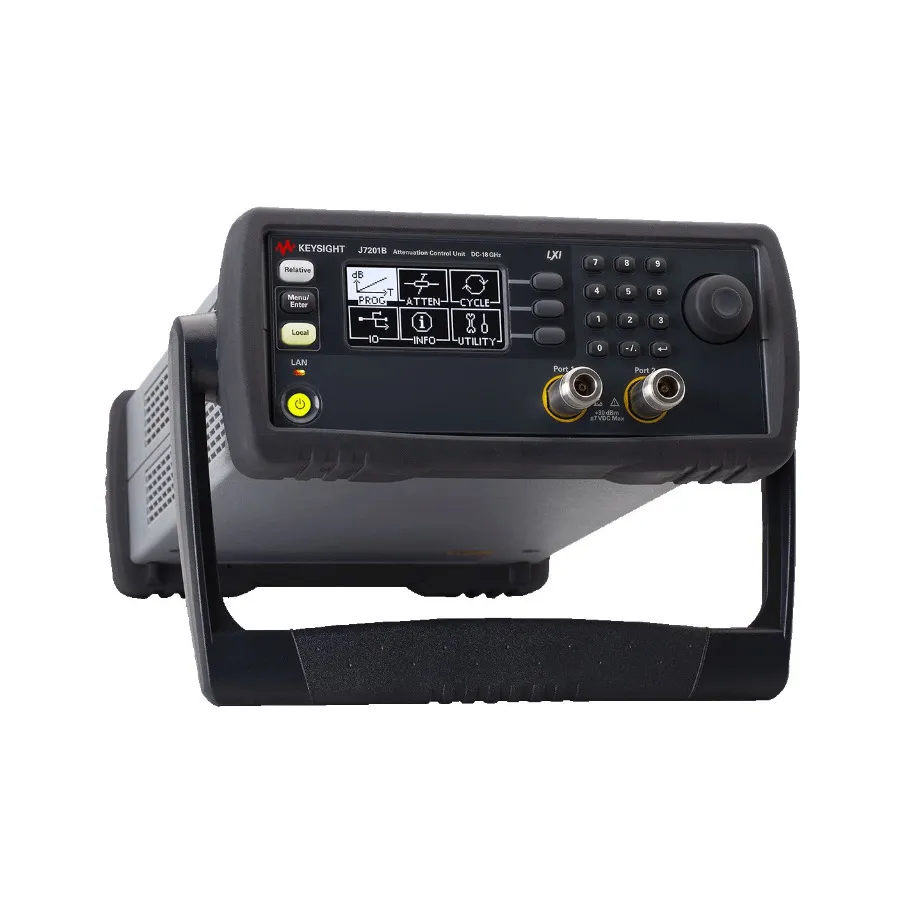

Keysight J7201B/001 Attenuation Control Unit
Request a quote
Keysight J7201B/001 is an attenuation control unit for RF testing (DC-18 GHz) with Type-N connector, 0-121 dB range, and advanced sweep functionality.
Product details
| Model | J7201B/001 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight J7201B/001 is an attenuation control unit with Type-N connector, designed for R&D and production engineers in wireless communications, aerospace, defense, and electronic components industries. Operating from DC to 18 GHz, it provides precise attenuation control with exceptional stability and repeatability over millions of cycles, making it suitable for both laboratory and production test environments.
Key Features
- Advanced attenuation sweep function with customizable dwell time and cycle count
- Relative attenuation step function for flexible control schemes
- 1 dB step resolution with 0 to 121 dB range
- Exceptional < 0.03 dB insertion loss repeatability per section over 5 million cycles
- Type-N (female) connector
- Compact half-rack, 2U form factor
- GPIB, USB, and LAN connectivity (LXI Class C compliant)
Applications
- WiMAX and WLAN component design and validation
- Mobile handset base transceiver station (BTS) testing
- Wireless communication system testing
- Aerospace and defense RF applications
Specifications
| Attenuation | 121 dB |
| Connector Type | N-type |
| Frequency | 18 GHz |
| Maximum Power | 1 W |
