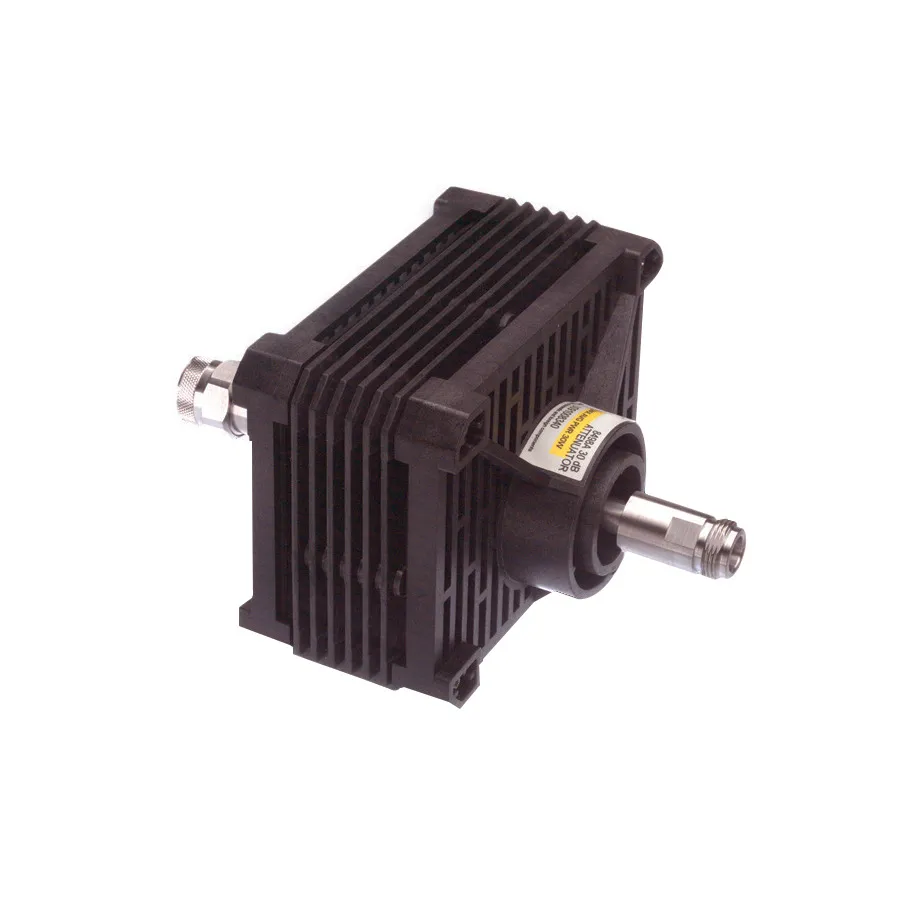

Keysight 8498A/030 30 dB Coaxial Fixed Attenuator
Request a quote
Keysight 8498A/030 is a 30 dB fixed coaxial attenuator rated for 25 W average power with frequency range DC to 18 GHz, low SWR, and ±1 dB accuracy.
Product details
| Model | 8498A/030 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8498A/030 is a 30 dB coaxial fixed attenuator designed for high-power RF and microwave applications. It operates across the DC to 18 GHz frequency range and is rated for 25 W average power input, making it suitable for demanding measurement and signal conditioning tasks.
Key Features
- 30 dB fixed attenuation
- Frequency range: DC to 18 GHz
- Peak power rating: 500 W (DC to 5.8 GHz), 125 W (5.8 to 18 GHz)
- Low SWR: 1.15 up to 8 GHz; 1.25 up to 12.4 GHz; 1.3 up to 18 GHz
- Accuracy: ±1 dB over entire frequency range
- Type-N male and female connectors
- Cooling fins for continuous maximum power operation
Applications
- High-power RF signal attenuation
- Microwave test and measurement
- Impedance matching and level control
Specifications
| Alternate Product Number | 8498A 030 |
