Keysight 8496H/002/016/024/H04 Programmable Step Attenuator
Request a quote

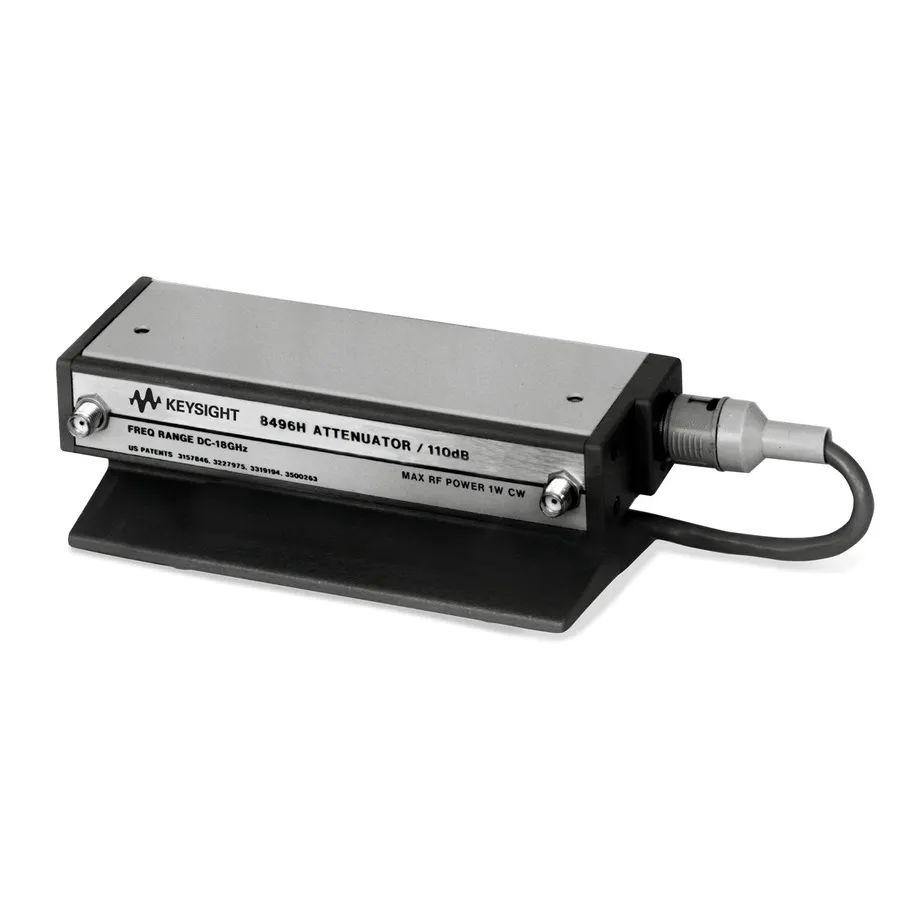

Keysight 8496H/002/016/024/H04 SMA attenuator with internal protection diodes, 0 to 110 dB attenuation, dc to 18 GHz, 0.01 dB repeatability.
Product details
| Model | 8496H/002/016/024/H04 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8496H/002/016/024/H04 is a configured programmable step attenuator for RF and microwave applications across dc to 18 GHz, featuring internal protection diodes for the drive input. It includes SMA female connectors and 24 Vdc supply voltage with a 10-pin to 14-pin DIP cable adapter. The attenuator delivers 0 to 110 dB attenuation in 10 dB steps with 0.01 dB repeatability.
Key Features
- Frequency range: dc to 18 GHz
- Attenuation range: 0 to 110 dB in 10 dB steps
- Internal protection diodes on drive input (H04 option)
- Connector type: SMA female connectors
- Supply voltage: 24 Vdc
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
- Repeatability: 0.03 dB maximum with 5 million cycles per section typical
- Switching time: 20 ms maximum including contact settling
- Maximum RF power handling: 1 W average, 100 W peak
Configuration
- (002) SMA female connectors
- (016) 10-pin to 14-pin DIP cable adapter
- (024) 24 Vdc supply voltage
- (H04) Internal diodes for drive input protection
Applications
- Automated RF test systems requiring input protection
- Precision attenuation control with electrostatic discharge (ESD) protection
- Systems with external controller integration and 24 Vdc compatibility
