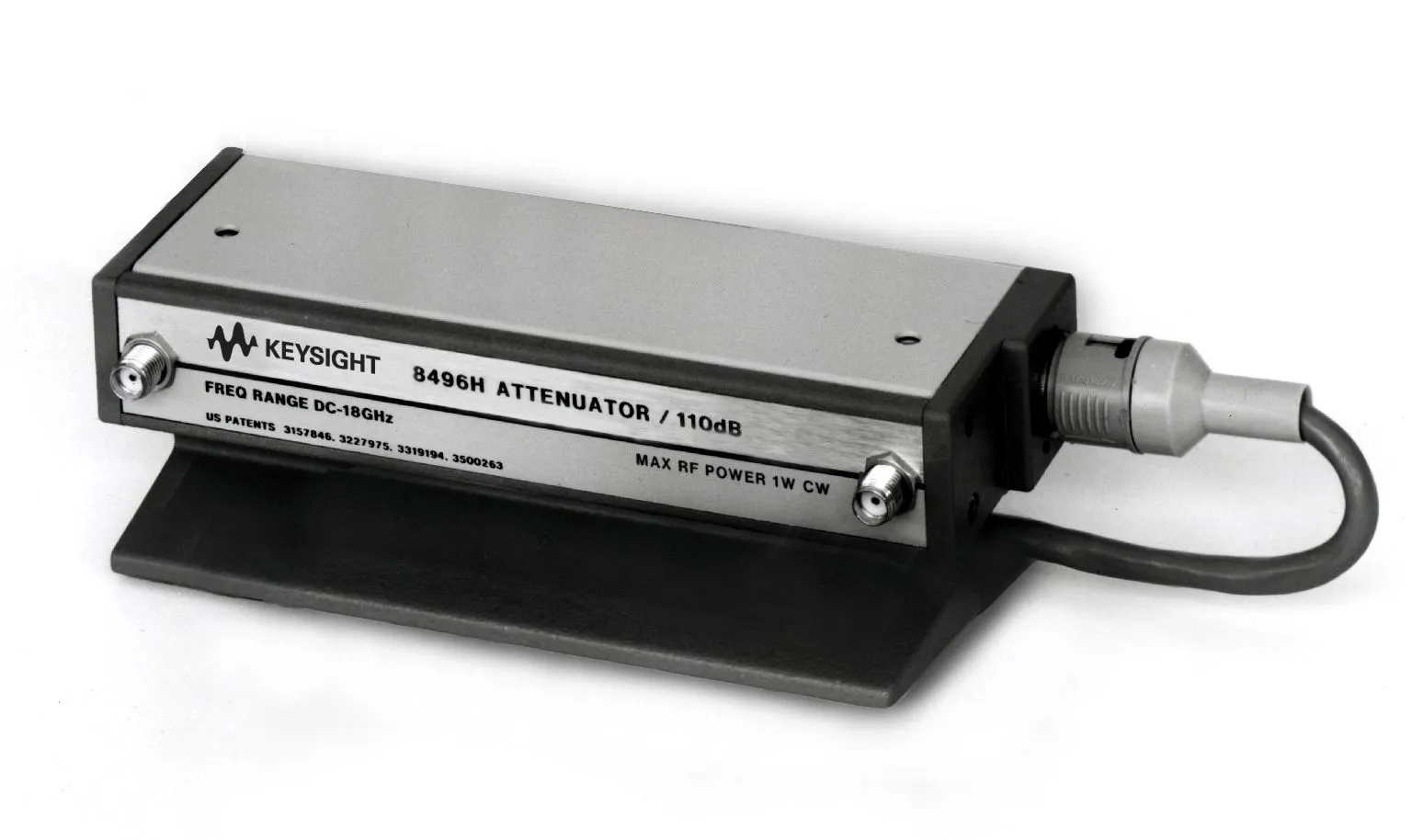

Keysight 8496H Programmable Step Attenuator
Request a quote
Keysight 8496H programmable step attenuator provides 0 to 110 dB attenuation in 10 dB steps across dc to 18 GHz with 0.01 dB repeatability.
Product details
| Model | 8496H |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8496H is a programmable step attenuator for RF and microwave applications across a wider dc to 18 GHz frequency range. It delivers attenuation in 10 dB steps from 0 to 110 dB with exceptional repeatability of 0.01 dB, supported by precision gold-plated leaf springs rated for over 5 million operating cycles per section.
Key Features
- Frequency range: dc to 18 GHz
- Attenuation range: 0 to 110 dB in 10 dB steps
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
- Repeatability: 0.03 dB maximum with 5 million cycles per section typical
- Switching time: 20 ms maximum including contact settling
- Maximum RF power handling: 1 W average, 100 W peak
Connector Options
- Signal: Type-N female, SMA female, or APC-7
- Programming: 12-pin Viking or optional 14-pin DIP
Applications
- RF and microwave test and measurement systems up to 18 GHz
- Precision attenuation control in receiver testing
- Automated test systems with high repeatability requirements
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
