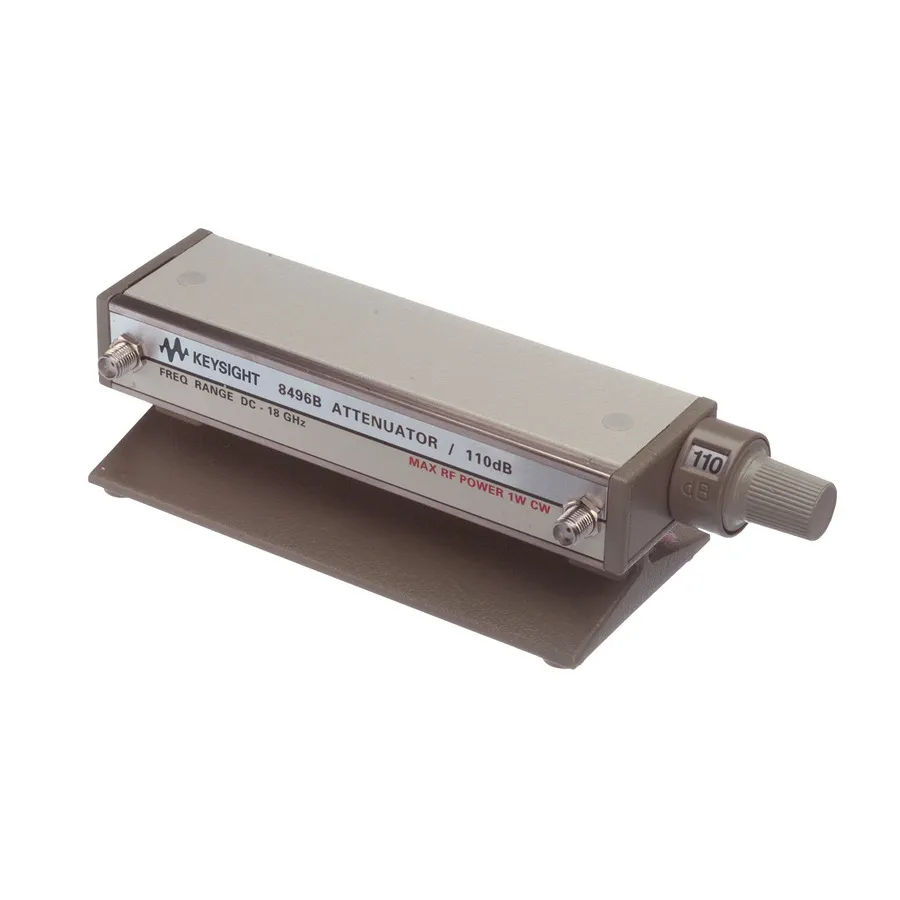

Keysight 8496B/002 Manual Step Attenuator
Request a quote
Keysight 8496B/002 manual step attenuator offers 0-110 dB attenuation, DC to 18 GHz range, 5M+ cycle life, and 0.01 dB repeatability with SMA connectors.
Product details
| Model | 8496B/002 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8496B/002 is a manual step attenuator designed for precision RF measurements from DC to 18 GHz. It provides attenuation in 10 dB steps from 0 to 110 dB with exceptional repeatability and reliability. Gold-plated leaf springs ensure long operational life with minimal performance degradation over millions of cycles.
Key Features
- Frequency range: DC to 18 GHz
- Attenuation range: 0-110 dB in 10 dB steps
- Repeatability: 0.01 dB typical
- Insertion loss: 0.6 dB + 0.09 dB/GHz at 0 dB
- Maximum SWR: 1.5 (1.5-8 GHz), 1.6 (8-12.4 GHz), 1.9 (12.4-18 GHz)
- Life span: 5+ million cycles per section
- Power handling: 1 W average, 100 W peak
- Connector: SMA female
- NIST traceable calibration available (Option UK6)
Applications
- Precision RF and microwave testing
- Component characterization and validation
- Signal level control in test systems
- Calibration and measurement standards
Specifications
| Series | 8496x Series |
