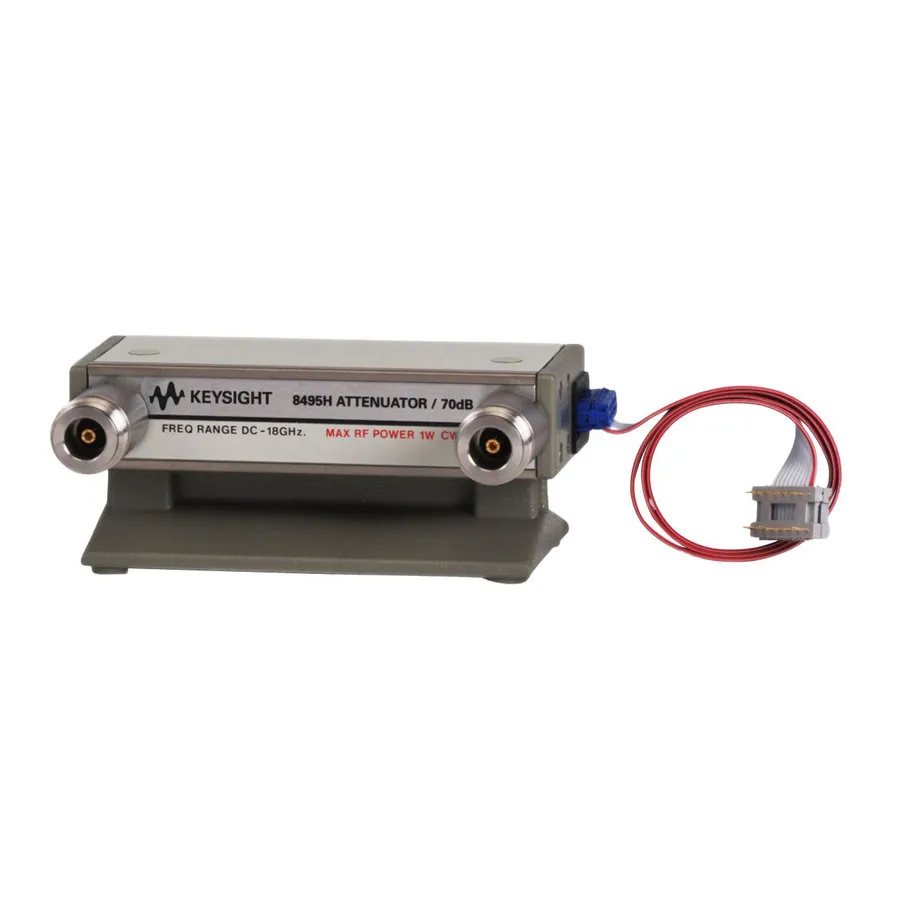

Keysight 8495H/002/024/060 Programmable Attenuator
Request a quote
Keysight 8495H programmable step attenuator with dc to 18 GHz range, 70 dB attenuation in 10-dB steps, and 0.01 dB repeatability.
Product details
| Model | 8495H/002/024/060 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8495H is a dc to 18 GHz programmable step attenuator designed for RF and microwave testing applications. It provides precise attenuation control in 10 dB steps from 0 to 70 dB with exceptional repeatability and reliability. Precision gold-plated leaf springs ensure long life and very high attenuator repeatability, enabling accurate and repeatable measurements over millions of switching cycles.
Key Features
- Frequency range: dc to 18 GHz
- Attenuation range: 0 to 70 dB in 10 dB steps
- Insertion loss at 0 dB: 0.4 dB + 0.07 dB/GHz
- Maximum SWR: 1.35 (to 8 GHz), 1.5 (to 12.4 GHz), 1.7 (to 18 GHz)
- Repeatability: typical 0.01 dB, max 0.03 dB per section
- Lifespan: over 5 million switching cycles per section
- Maximum RF input power: 1 W average, 100 W peak
- Maximum switching time: 20 ms including contact settling
- Available RF connectors: Type-N female, SMA female, APC-7
- Programming interface: 12-pin Viking or optional 14-pin DIP
Applications
- Automated RF and microwave measurement systems
- Signal level control and attenuation testing
- Receiver and component characterization
